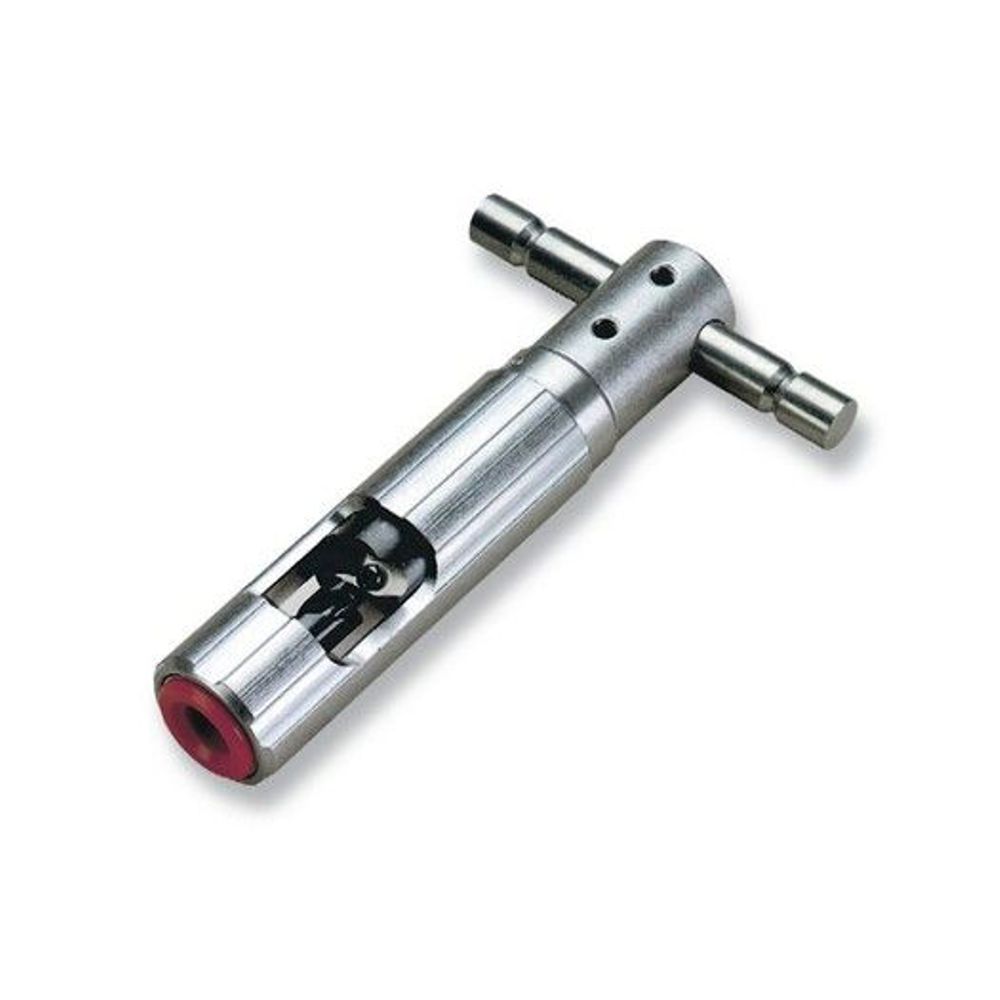

CST625 Core Strip Tool for .625″ Coax Cable
$103.18 Each Add to cart

Cablematic - CST625 Core Strip Tool for .625″ Coax Cable

$103.18 Each

Coring & Stripping has never been easier. Ripley’s CST Series features manual or drill operation with a standard “T” handle and a built in 3/8″ drill adapter. It also features a heat treated, sheath cutting blade that produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit. The CST is a great addition to any tool kit with its ability to be used on CommScope P1, P3 Cable Guard Cable; Times Fiber T4, T6, T10 Cable.

Ships in 2 to 3 weeks
Safe Checkout

Description

  •  Combination tool cores and strips in one fast and precise operation
  • Manual or drill operation; CST tools have a standard “T” handle with a built-in 3/8 in. (9.5 mm) drill adapter; CST-R tools have a ratchet “T” handle and a separate 3/8 in. (9.5 mm) drill adapter
  • Heat treated sheath cutting blade produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit
  • Spiral-fluted, heat-treated steel coring bit
  • Rugged, durable, all-metal construction
  • Strip stops available for exact stripping lengths of 0.50 to 2.00 in. (12.7 to 50.8 mm)
  • Color coded cable guide sleeves for easy cable size identification
  • Use of CC-100 or CC-200 Center Conductor Cleaner/Scraper removes residual dielectric which remains on the conductor after coring and stripping
  • Made in the U.S.A.
  • Length: 6.88 in. (175 mm)
  • Weight: 13 oz (369 g)

Brand

Cablematic

Leading Manufacturer of Cable Preparation Tools The Cablematic product line features coring and stripping tools, drop cable trimmers and compression/crimp tools for the CATV, Telecommunications and Wireless industries. Cablematic tools prepare trunk and distribution cables in addition to drop and messengered cables.

Additional information

Weight 1 lbs
Dimensions 9 × 3 × 2 in
