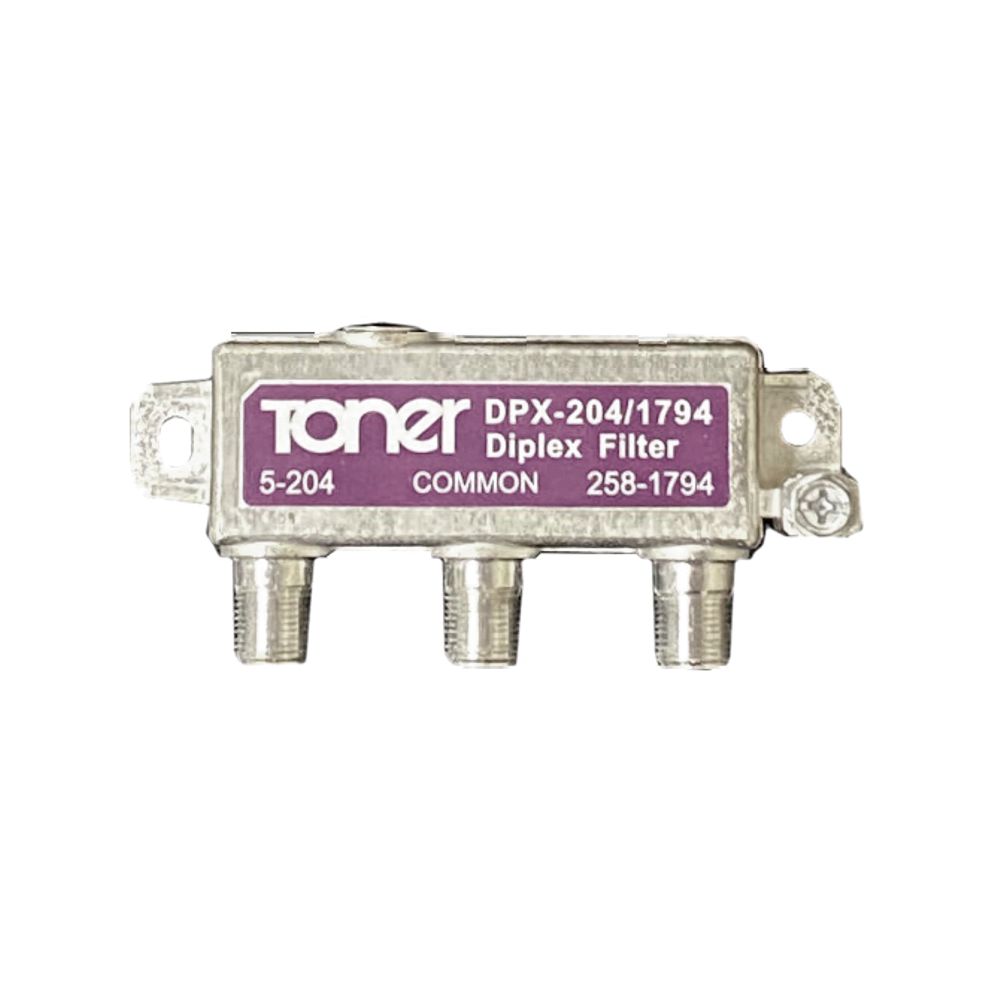

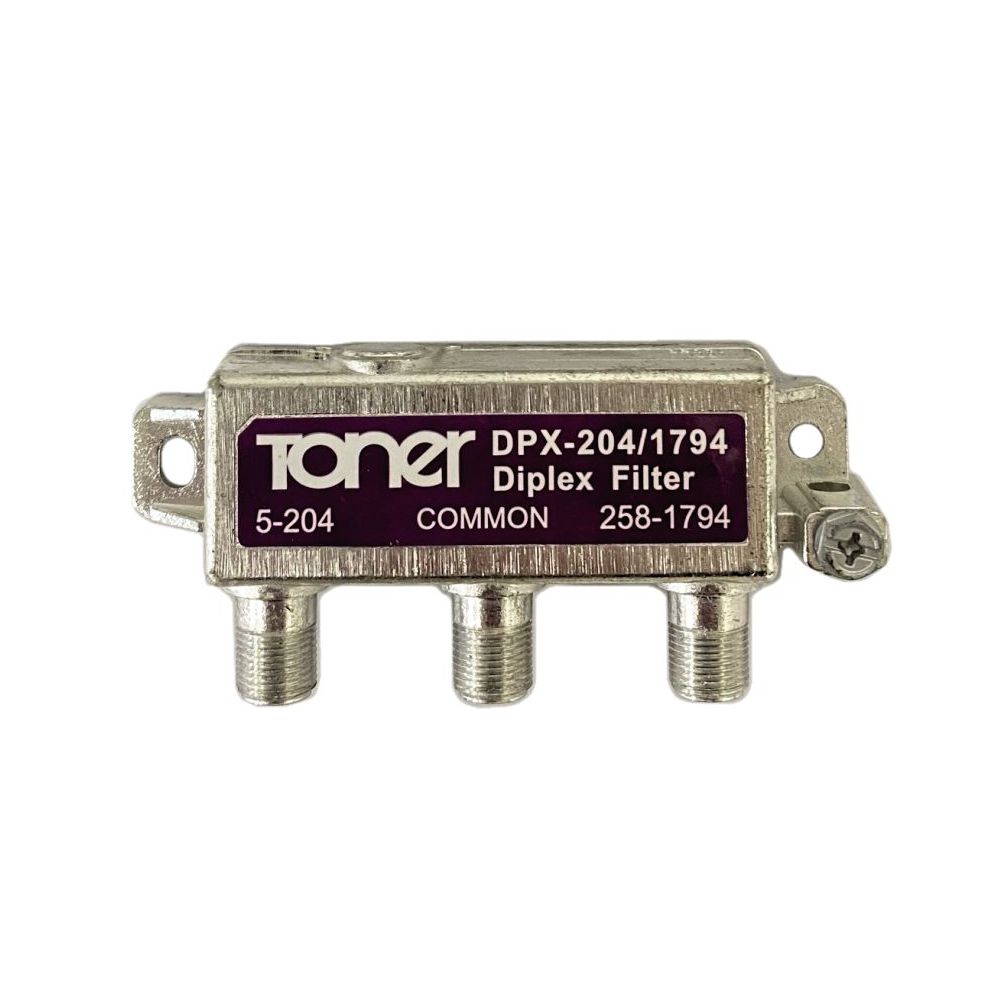

Name: DPX-204-1794 Diplex Filter 5-204/258-1794 MHz - Toner Cable
SKU: TCE41900110
Price: 23.00 USD
Availability: InStock

Product Details

Toner’s Diplex Filters are designed for the new DOCSIS 3.1 frequencies but are also compatible with standard 1000 MHz system.

They feature a small compact housing that has a solder back for 120 dB RFI shielding. Three models are available to fit different reverse frequencies 5-85 MHz, 5-42 MHz and 5-204MHz for use depending on system requirements.

The DPX-42 passes to 1222 MHz and the DPX-85, DPX-204 pass to 1794MHz so they are future proof as systems increase bandwidth.

Description

General Specifications

Impedance: 75 Ω
Connectors: “F” Female
Size: 3-1/2” x 1-3/8” x.5/8”

DPX-85-1794

Insertion Loss: (105-1794 MHz)
1dB (typ) /1.8dB (Max)
Return Loss: (5-85MHz, 105-1794MHz) 18dB
(typ) / 14dB (min)
Isolation: (5-85MHz, 105-1794MHz)
50dB (typ) / 45dB (min)

DPX-42-1220

Insertion Loss: (5- 42 MHz)
0.85dB (typ) /1.5dB (Max)
Insertion Loss: (54-1220 MHz) 1dB(tap)/1.8 dB(Max)
Return Loss: (5-42 MHz, 54-1220 MHz)
18dB(typ) / 14dB(min)
Isolation: (5-42 MHz, 54-1220 MHz)
50dB(typ) / 45dB(min)

DPX-204-1794

Insertion Loss: (5- 204 MHz)
1.0dB (typ) /1.9dB (Max)
Insertion Loss: (258-1794 MHz) 1dB(tap)/2.0 dB(Max)
Return Loss: (5-204 MHz, 258-1794 MHz)
18dB(typ) / 15dB(min)
Isolation: (5-204 MHz, 258-1794 MHz)
50dB(typ) / 45dB(min)

Additional information

Weight	0.10 lbs
Dimensions	3 × 1 × 1 in
