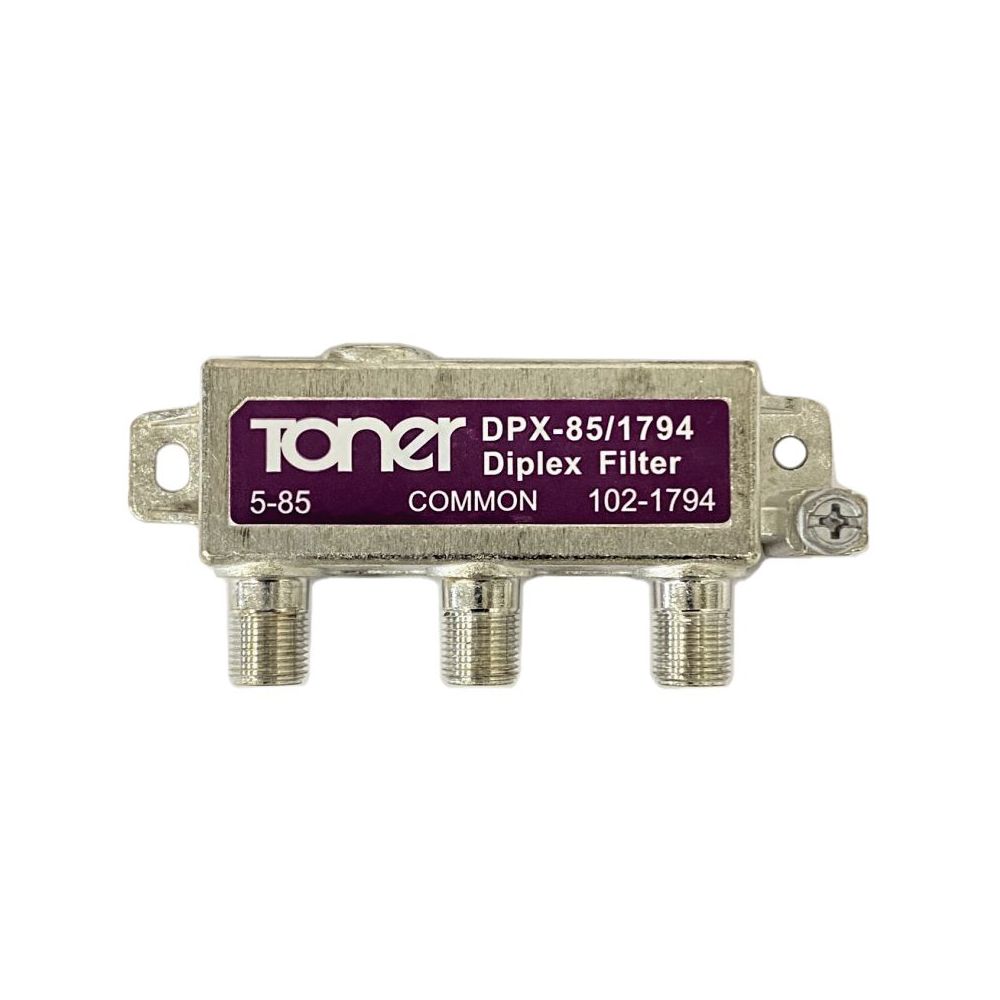

DPX-85-1220 Diplex Filter 5-85/102-1220 MHz
$17.57 Each Add to cart

Toner Cable - DPX-85-1220 Diplex Filter 5-85/102-1220 MHz

$17.57 Each

These Diplex Filters are designed for the new DOCSIS 3.1 frequencies but are also compatible with standard 1000 MHz system.

They feature a small compact housing that has a solder back for 120 dB RFI shielding. Two models are available to fit different reverse frequencies 5-85 MHz and 5-42 MHz for use depending on system requirements.

Both models pass to 1222 MHz so they are future proof as systems increase bandwidth.

Usually ships same business day
Safe Checkout


General Specifications

Impedance: 75 Ω
Connectors: “F” Female
Size: 3-1/2” x 1-3/8” x.5/8”


Insertion Loss: (105-1220 MHz)
1dB (typ)/1.8 dB (Max)
Return Loss: (5-85MHz, 105-1220MHz) 18 dB
(typ)/ 14dB (min)
Isolation: (5-85MHz, 105-1220MHz)
50dB (typ) / 45dB (min)


Insertion Loss: (5- 42 MHz)
0.85dB (typ)/1.5 dB (Max)
Insertion Loss: (54-1220 MHz) 1dB(tap)/1.8 dB(Max)
Return Loss: (5-42 MHz, 54-1220 MHz)
18 dB(typ)/ 14dB(min)
Isolation: (5-42 MHz, 54-1220 MHz)
50dB(typ) / 45dB(min)
