Drake - DTD1000

$378.00 Each

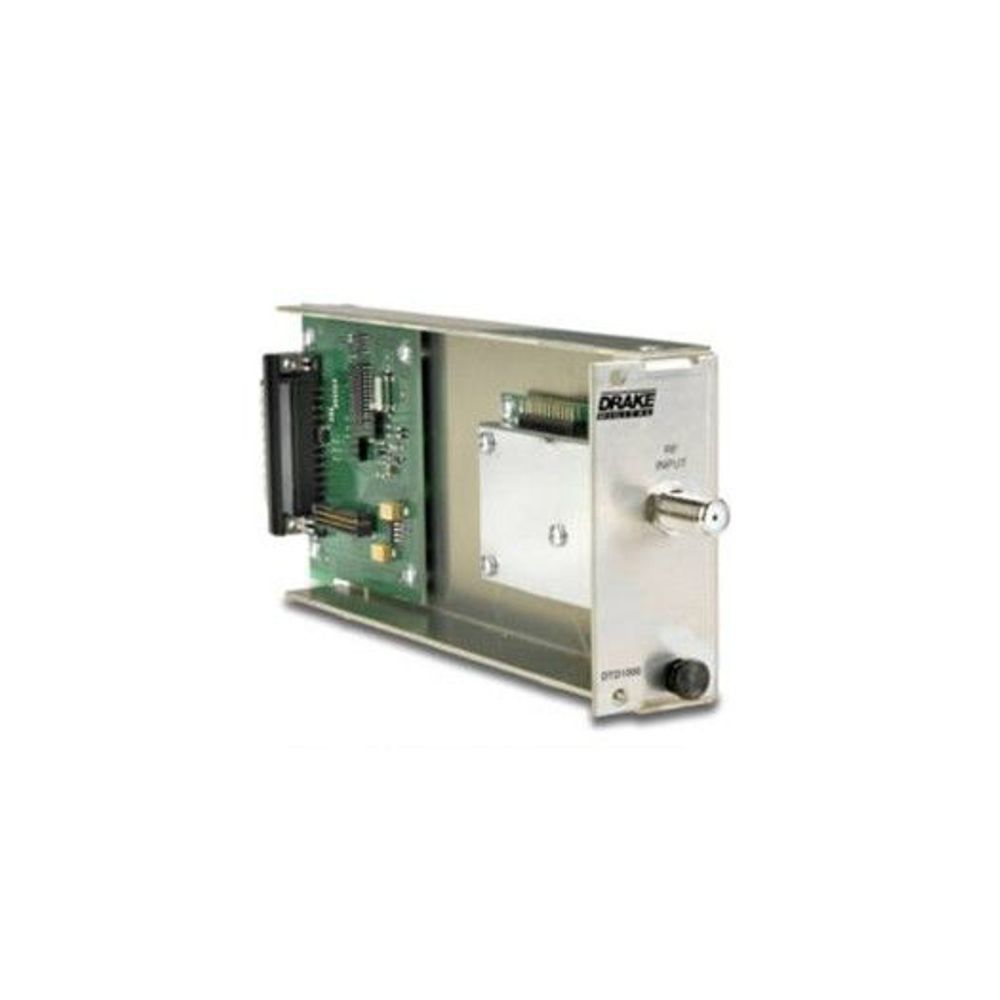

The DTD1000 input module tunes any 8VSB or QAM channel between 54 and 1002 MHz, making it ideal for digital channel processing applications where a single digital video signal is received, error-corrected, clocked (at a user determined fixed rate) and re-modulated on the same or another RF channel.

The DTD1000 may be used to convert one off-air ATSC 8VSB signal to a QAM output with rate adjustment or, when used in the processor mode with only one input, the MEQ1000 can process ATSC or CATV QAM MPEG-2 inputs.

Usually ships same business day
Safe Checkout

Description

  • Input Frequency Range: 54 to 1000 MHz
  • Channel Plans (Menu selectable): Std. CATV, HRC, IRC, or Broadcast
  • Input Channel Bandwidth: 6 MHz
  • Input RF Level Range: -33 dBmV to +35 dBmV, 8VSB  -22 dBmV to +35 dBmV, 64 QAM,
  •  -17 dBmV to +35 dBmV, 256QAM
  • Input Impedance: 75 Ohms
  • Input Return Loss: > 6 dB, Broadcast mode
  • >12 dB, CATV mode
  • Image rejection: 80 dB
  • Adjacent Channel Rejection: 40 dB
  • Noise Figure: < 9 dB, Broadcast mode
  • Demodulation Modes: 8VSB – ATSC
  • 64QAM, 256QAM, – ITUB,
  • CATV mode
  • Symbol Rates: 10.76 MS/s, 8VSB
  • 5.057MS/s, 64QAM
  • 5.3606MS/s, 256 QAM

Brand

Drake

About Drake Digital: Video Encoders, Transcoders & Processing Equipment For over 65 years, RL Drake, (now Drake Digital) has been committed to developing quality communication products that enrich the lives of your consumers. Drake delivers innovative electronic communications solutions for cable television systems, digital television reception, video signal distribution, and digital video encoding. Drake’s digital video encoders, transcoders and processing equipment are known for their advanced features, cutting edge technology and reliability in demanding environments. Superb value, performance and versatility have earned Drake’s digital video encoders awards for innovation and development. Advanced encoder features offer industry-leading performance while simplifying hardware networks and reducing inefficiency. Exacting standards, quality, and reliability have made Drake the go-to name for video applications in every type of high profile, no-fail situation or environment around the world, including Higher Education Institutions, pro sports arenas, marine applications, extreme weather conditions within the Arctic Circle, and even at the White House. Everywhere you want to deliver your signals Drake will get you there.

Additional information

Weight 1 lbs
Dimensions 12 × 7 × 4 in
