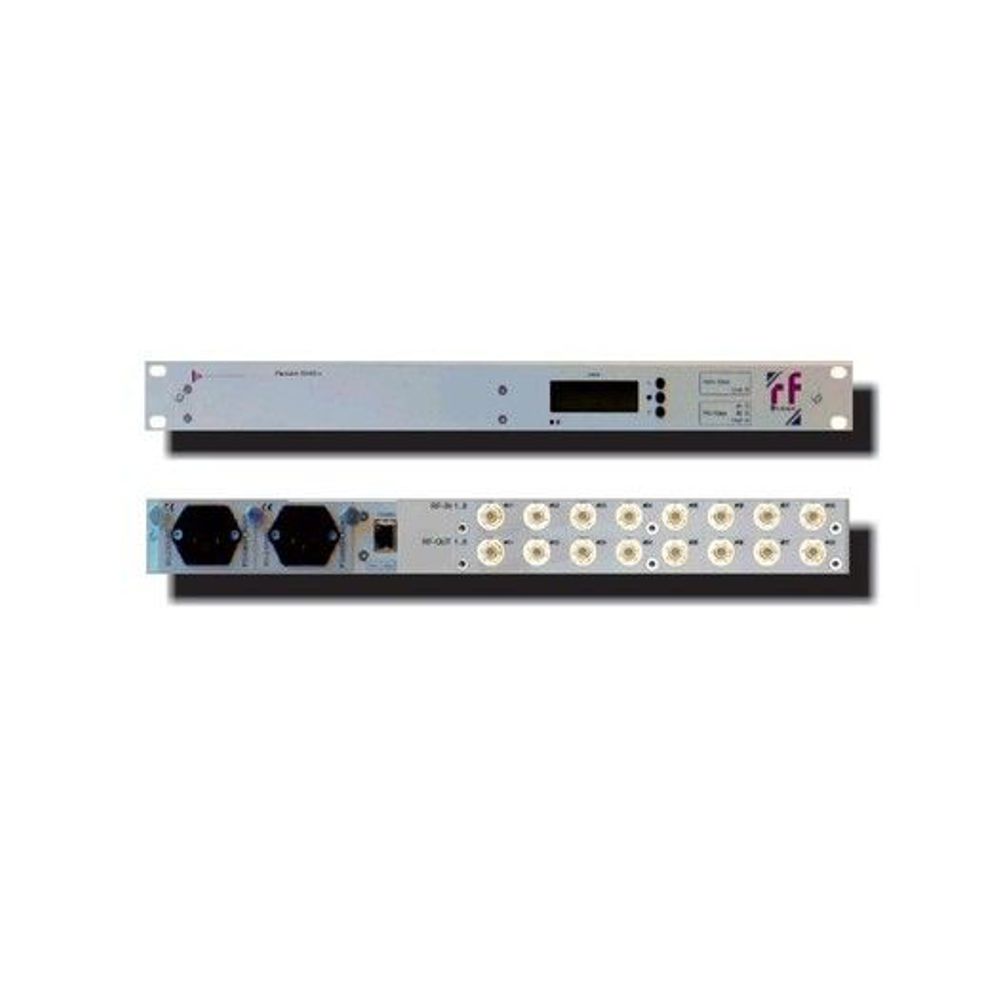

FlexLink S3-88 L Band 8 X 8 Matrix Switch
Call for Price Add to cart

RF Design - FlexLink S3-88 L Band 8 X 8 Matrix Switch

Call for Price

The FlexLink S3-88 in 1RU/19″ rack-mount design represents a professional 8:8 L-Band Switch-Matrix. The unit features an efficient, reliable and space saving solution for today´s and future L-Band signal management applications and allows to switch/route 8 inputs to 8 outputs without limitations and interferences (any input can be routed to one or all outputs), while all combinations of inputs and outputs are freely configureable locally and remotely. The unit features switchable LNB-supply, variable gain-adjustment, RF power monitoring as well as 1:1 redundant dual power-supply. Isolation, linearity and frequency response values are at the highest level assuring excellent and stable operation with superior RF performance and signal quality: The FlexLink S3-88 is equipped with a front-side LC-Display and keypads for user-friendly local configuration. Remote configuration can be done via its rear-side ethernet-interface or RS232-interface (http/WEB-GUI, SNMP) while it can also being integrated into a management and control system (NMS or M&C) via SNMP. The FlexLink S3-88 is an idial platform for flexible signal switching/routing and perfectly suited for integration into Teleports, Satellite Earth-Stations as well as Broadcasting and Broadband architectures.

Safe Checkout

Description

  • Space saving 1RU/19″ rack-mount design
  • Low power-consumption & heat generation
  • Professional L-Band switching/routing solution
  • 8 L-Band inputs / 8 L-Band outputs
  • Available with 50Ohm SMA(f) or 75Ohm F(f) connectors
  • In- and output combination freely configurable
  • No routing limitation
  • RF power monitoring (@ any input)
  • Variable gain adjustment -20dB…+10dB (@ every input)
  • Switchable LNB supply 13/15/18V, 22kHz;
  • 400mA current-monitoring (@ any input)
  • Superiour RF perfornance and stability
  • 1:1 redundant dual power supply (hot swappable)
  • Front side LCD & keypads for local configuration
  • Rear side ethernet-interface & RS232-interface for remote configuration (WEB, SNMPv2c)

Brand

RF Design

RF Design's products are developed with highest quality levels focusing most excellent technical performance. Additionally RF Design is strong in designing customized solutions fullfilling exactly your requirements. Permanent research guarantees high quality and best performance. This includes the selection process of components and the ongoing design optimization of mechanical parts. Steady prototyping and intensive test periodes are ensuring best results in terms of functionality , specifications and performance.

Additional information

Weight 27 lbs
Dimensions 24 × 14 × 6 in
