H-12HDMI-QAM-IPLL
$9,500.00 Each Add to cart

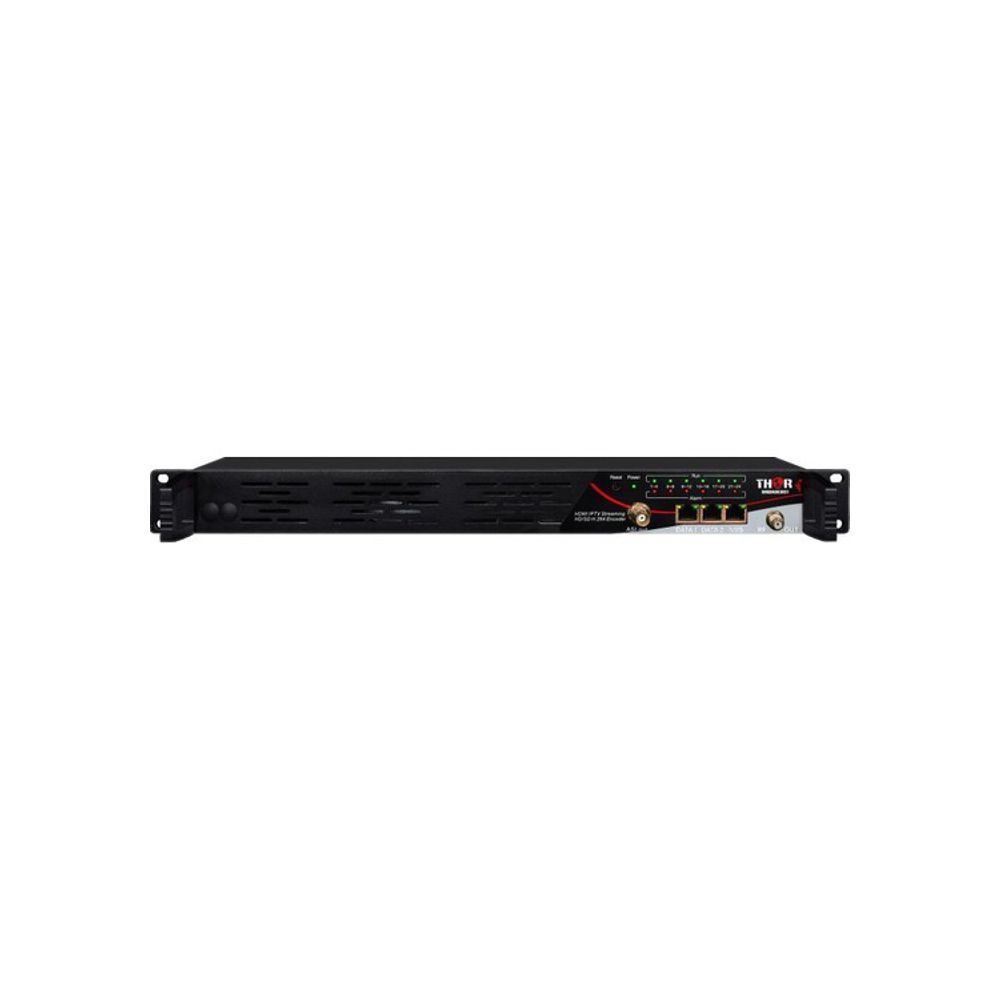

Thor Broadcast - H-12HDMI-QAM-IPLL

$9,500.00 Each

12 HDMI Channels to CATV RF Coax Digital Modulator QAM, ATSC, DVB-T, ISDB-T, format up to 1080p60 low latency with IPTV Streamer and ASI Out

The new high capacity H-12HDMI-QAM-IPLL Encoder Modulator from Thor Broadcast has a new sophisticated redesigned platform for enabling modulation of up to 12 HDMI sources and 12 CVBS CC(Closed Caption) sources simultaneously. This unit has the ability to ingest IP Transport Streams and multiplex them among the RF output channels, similarly you can also input a single ATSC (or other RF modulation standard) and add its transport streams among the QAM output. This unit comes standard with a plethora of options to help you add extra transport streams from various media to build your own RF headend quickly and easily without extra hardware.

Ships in 1 to 2 weeks
Safe Checkout

Description

  • 12 HDMI inputs with 12 CC inputs via CVBS
  • (Data 1 port) over UDP and RTP
  • MPEG1 Layer II; Dolby AC3, AC3 pass through ; MPEG-2 AAC, MPEG-4 AAC
  • HD (1080i/720p) to SD (576p/480p) downscale conversion
  • 1MPTS and 24 SPTS IP (DATA1 and DATA2 port) output over UDP, RTP/RTSP
  • ASI output mirrors one of the RF carriers
  • PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
  • Control via web management NMS
  • 16 Groups Multiplexing/Scrambling/ DVB-C QAM ANNEX A and B  Modulating (based on RF)
  • 8 Groups Multiplexing/ DVB-T/ATSC Modulating (based on RF)
  • 6 Groups Multiplexing / ISDB-T Modulating (based on RF)
  • Up to 16 MPTS IP (Data2 Port Only) output over UDP, RTP/RTSP (# of MPTS is based on RF standard of device) (16MPTS for DVB-C; 8MPTS for DVB-T/ATSC; and 6MPTS for ISDB-T)

Brand

Thor Broadcast

Specializing in Turnkey Solutions in Broadcast CATV & Fiber Optic Distirbution Complete Line of Encoding & Decoding Equipment -Easily Transport any Signal over IP, Fiber and RF Thor Fiber and Thor Broadcast have been trusted manufacturers of CATV and Fiber Transport equipment for over 2 decades in telecom, sports, education, hotel, TV studio, casino, house of worship, and Live events. Contact our solutions experts today to help solve your CATV/IP/Fiber dilemmas here locally in California. Using a variety of fiber mux/demux technologies we're able to bring world class custom orders to your door in no time. Our award winning CATV Encoder Modulators have been touted globally as an all inclusive headend in a box, encoding any input HDMI/SDI/CVBS/YpPbr in Mpeg2/H.264 and outputting on RF/IP/ASI in Ultra Low Latency simultaneously makes it a perfect fit for any application. Our clients range from institutions all over the world, and especially here in the USA featuring our Armed Forces, NASA, NFL, NCAA, and the DOD. Before you make any choice, choose to call Thor to help assist your next project.

Additional information

Weight 16 lbs
Dimensions 19 × 17 × 1.7 in
