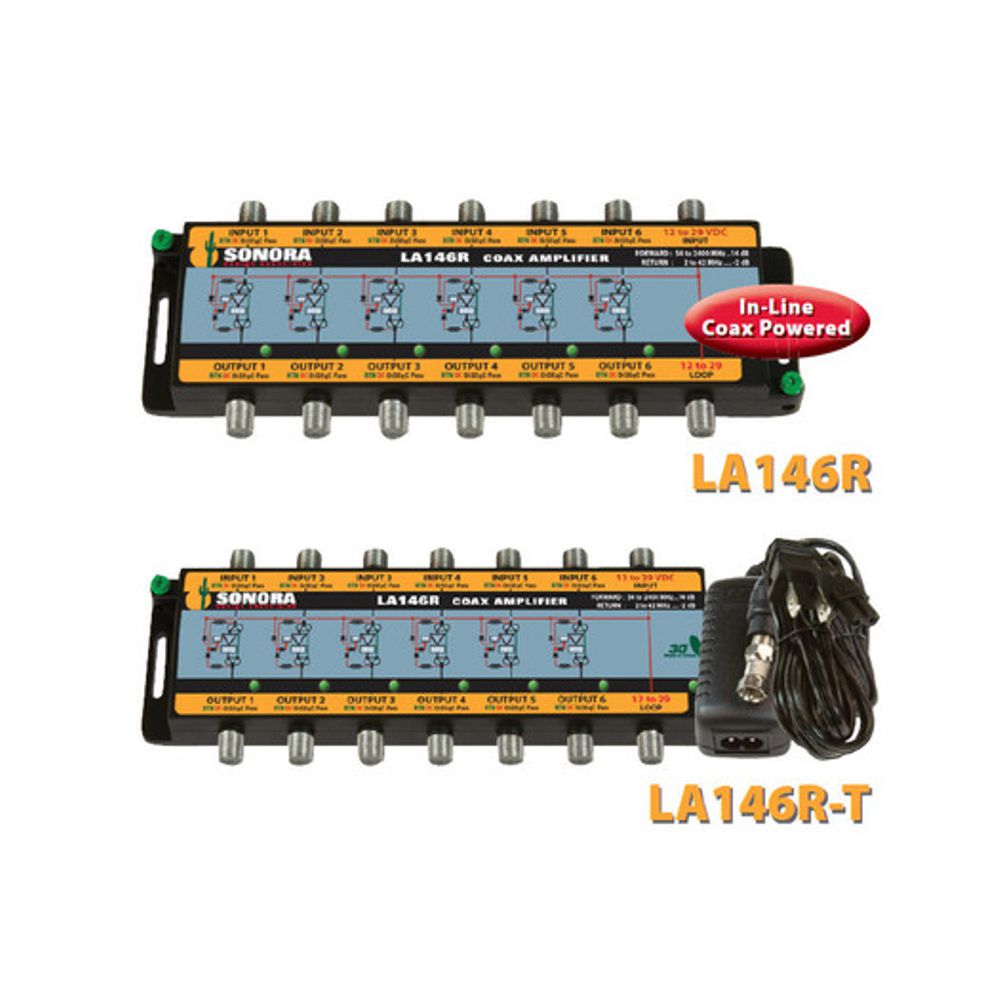

LA146R 6 Input DBS ATSC Amplifier Powered by Each RF Output Connector


SITUATION –DBS and CATV or Over The Air signals are required at multiple locations connected via coax cable.

SOLUTION – Model LA146R may be placed after a DBS dish or OTA antenna to extend the signals the equivalent of 150 feet of RG-6 cable.

RELATED CONSIDERATIONS – Model LA146R may be coax line powered from each RF output connector. Model LA146R-T includes an external power supply for direct powering. An energy conservation feature allows the amplifier to operate efficiently at 12 to 29 volts.

Ships in approx. 1 week
Safe Checkout

  • Wide bandwidth:  54 to 2150 MHz forward / 2 to 42 MHz return
  • High Input Ability:  -18 dBm
  • DC & 22 kHz/DiSeQc passing:  low insertion
  • Compact case:  die cast aluminum
  • Green Power Supply:  12 to 29 VDC Input

Additional information

Weight 1.5 lbs
Dimensions 7 × 5 × 5 in
