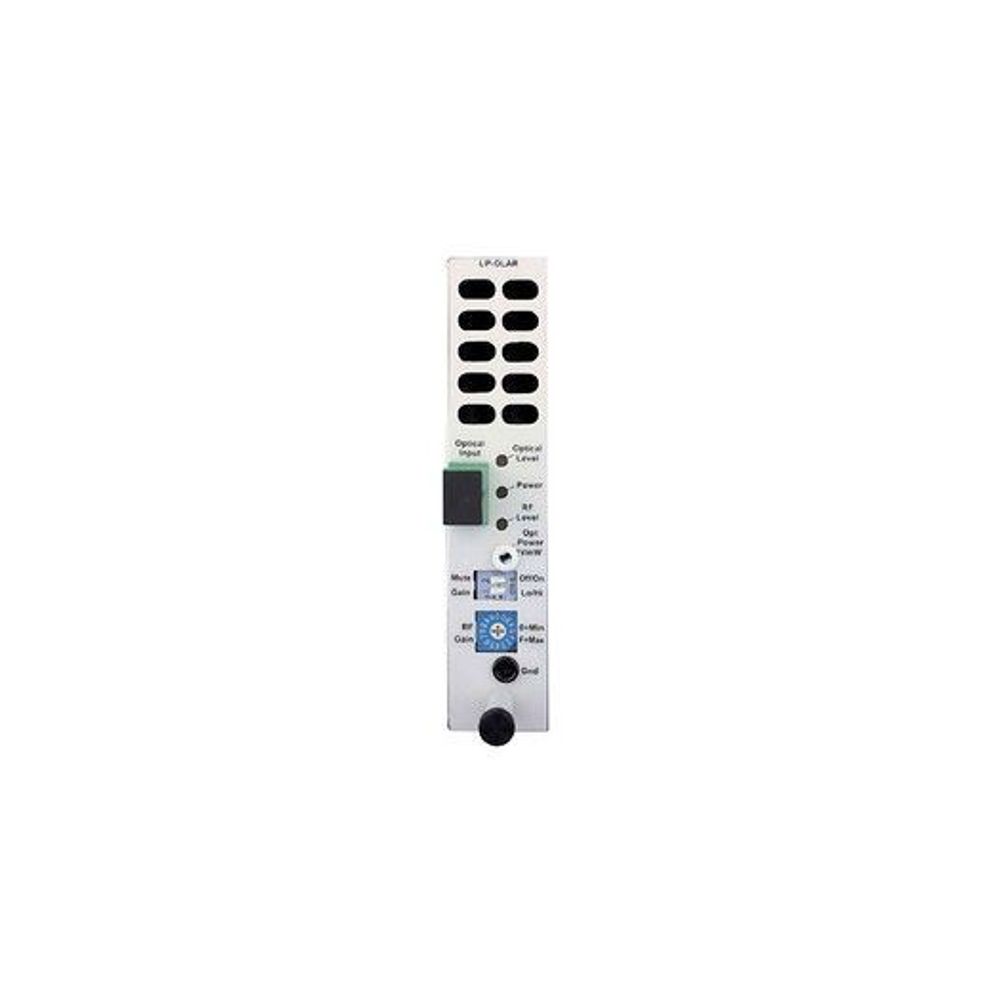

OLAR L band 10-4 GHz standalone receiver, 1310 nm, SC/APC connector 25 dB gain control
Call for Price Add to cart

Olson Technology - OLAR L band 10-4 GHz standalone receiver, 1310 nm, SC/APC connector 25 dB gain control

Call for Price

The Olson OLAT/OLAR Advanced L-Band System offers a feature-rich, versatile system in a very compact package. The Advanced L-Band system has been engineered to meet today’s high performance standards for L-Band transport with an extreme bandwidth range that will also allow the system to handle the next generation of satellite signals. The system is ideal for a wide variety of communications applications, including L-Band satellite antenna remoting, trunking radio, telemetry tracking, and time and frequency reference distribution. The extended frequency range to 4GHz allows this system to accommodate additional transponders coinciding with common European satellite communication applications.

The enhanced bandwidth to 4GHz is also unique in that it facilitates stacked LNB applications to accommodate additional transponders with enhanced DBS programming services (e.g., HDTV, local channels, etc.) over single-mode fiber for DBS television distribution in campus, fiber-to-the-premise (FTTx), and multiple dwelling unit (MDU) environments. All units are offered with 75 Ohm impedance using “F” connectors or 50 Ohms with SMA connectors. Optical connector options include FC/APC and SC/APC. Operating at 1310nm, 1550nm, CWDM, or DWDM wavelengths, the Advanced L-Band System will meet any satellite transport requirements.

The transmitter, receiver, and power supply are housed in rugged, compact, standalone enclosures. The Olson Technology adapter mounting plate refits the units on a 1RU or 2RU 19″ plate for installation in an EIA 19″ rack. The 2RU plate will allow up to six units to be mounted in a 2RU space.

Safe Checkout


  • Most Compact, full-featured L-Band system on the market!
  • Extreme bandwidth range of 10MHz to 4,000MHz handles all satellite signals.
  • Digital gain control with 25dB range for both the transmitter and the receiver.
  • Excellent L-Band performance with digital gain control over a 25dB range.
  • A receiver APD Detector option is available for the receiver offers extreme optical sensitivity. PIN Detector is standard.
  • 1310nm, 1550nm, CWDM, and DWDM wavelength DFB laser options.
  • Built-In test points, LED indicators and alarms for easy setup and maintenance.
  • OTAPS-4000-AC Power supply has built-in programming option for LNB voltage and 22kHz selection.
  • Multiple powering options: “F” connector or OTAPS-4000-AC via DIN connector option.
  • 75 Ohm “F” RF connector standard, 50 Ohm RF SMA connector option.
  • SC/APC optical connector standard, FC/APC connector optional.


Olson Technology

Specializing in Broadband RF Fiber Products Olson Technology, Inc. designs and manufactures electronic and fiber optic products for CATV, L-Band, FTTH, Headend Processing, CCTV, Private Cable, Aircraft Entertainment clients. Our manufacturing expertise blends custom and off the shelf products to maintain leading edge technology in our complete line of fiber optic transmission products. We specialize in broadband RF products that modulate, demodulate, and process audio and video signals in both analog and digital formats.Founded in 1985, it is a privately held company with its corporate headquarters in Sierra Village, CA

Additional information

Weight 1 lbs
Dimensions 1 × 1 × 1 in
