OTPN-412C Premise Node Receive Only

$409.54 Each

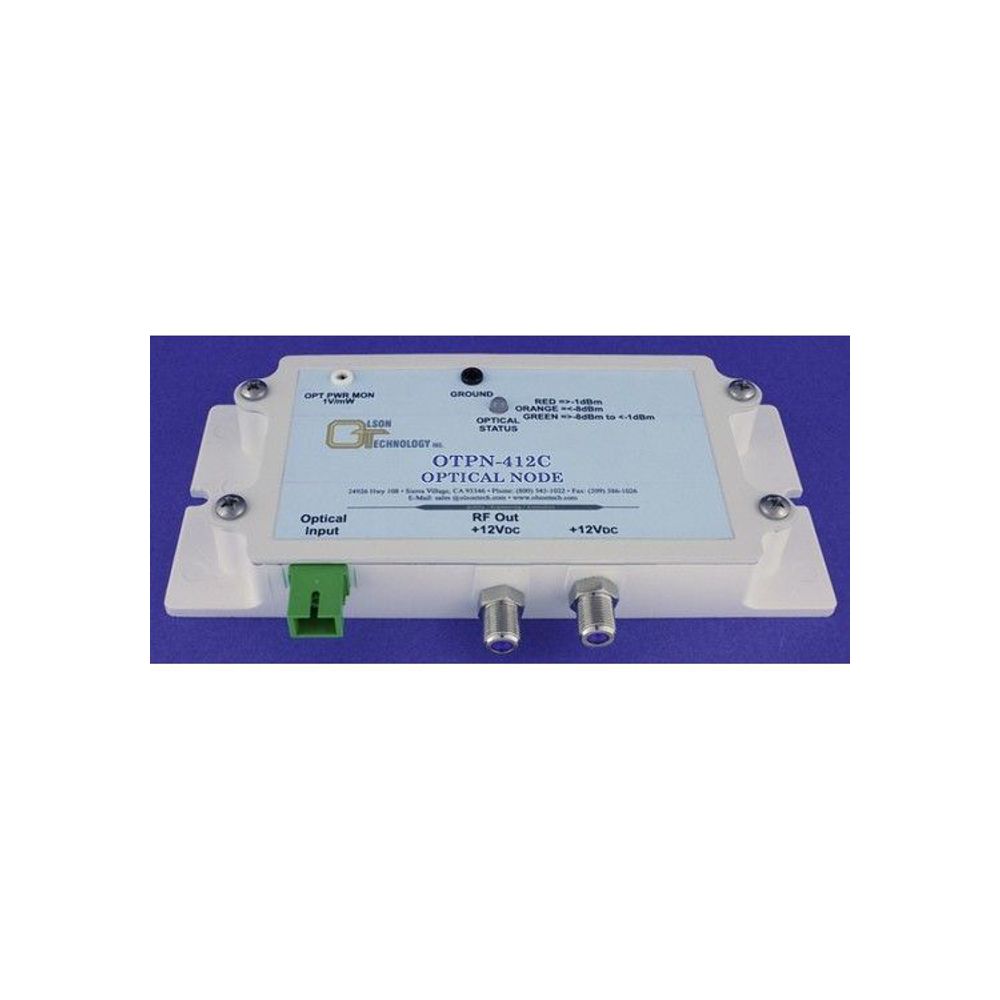

The Olson PremiseNode OTPN-412C Optical Node is a low-cost, compact, indoor CATV receive-only node in a cast Aluminum housing. It is designed with the latest optical receiver technology to reliably deliver a full slate of multiplexed video, data, and telephony services in an HFC (hybrid fiber/coax) or PON (passive optical network) broadband CATV environment.

The Model OTPN-412C is ideal for direct fiber transmission of CATV RF signals in FTTH, FTTx, MDU, corporate, government, educational, and other applications where a high performance, compact indoor node is required. The unit is constructed with high quality components to enable it to meet its performance specifications over a wide temperature range in an uncontrolled environment, but it does require protection from the elements. It is designed for desktop, shelf or wall-mounting.

The Model OTPN-412C offers good optical sensitivity, high RF output level, optical input power DC test point and optical level LED indicator. The unit includes a provision for flexible powering of the node, either locally through the DC Power IN “+12V ” port, or remotely up the coax drop DC through the “RF OUT/+12V ” port via an optional Power DC Inserting Coupler (PIC). The OTPS-12A-F ships with the unit. The OTPS-12A-F consists of a +12V/1.5A AC/DC power supply and a “F” connector adapter.

The Model OTPN-412C is the perfect companion to the Olson Technology, Inc. LaserLite and LaserPlus forward transmitter product families. It is also designed to mate with 1310nm, 1550nm, CWDM and DWDM optical transmitters from most leading manufacturers.

Usually ships same business day
Safe Checkout

  • Receive only indoor optical node for fiber-deep FTTX/PON CATV applications.
  • Wide optical input window of 0 to-8dBm at 1310/1550nm.]
  • High RF output range: +28dBmV @ -1dBm optical input and +14 dBmV @ -8 dBm optical input.
  • Full forward path bandwidth of 40-1,220MHz with low noise and distortion.
  • Calibrated DC test point for optical input power (1V/mW).
  • Tri-colored LED indicates optimal input range and power on.
  • +12 VDC for local or remote “up-the-coax” powering via a Power Inserter Coupler (PIC).
  • 6kV surge tolerant RF output and SMT construction for consistency, reliability, and performance.
  • Low power consumption.
  • New compact, light-weight, rugged cast aluminum housing for easy installation.

Additional information

Weight 3 lbs
Dimensions 15 × 8 × 5 in

Brand

Olson Technology

Specializing in Broadband RF Fiber Products Olson Technology, Inc. designs and manufactures electronic and fiber optic products for CATV, L-Band, FTTH, Headend Processing, CCTV, Private Cable, Aircraft Entertainment clients. Our manufacturing expertise blends custom and off the shelf products to maintain leading edge technology in our complete line of fiber optic transmission products. We specialize in broadband RF products that modulate, demodulate, and process audio and video signals in both analog and digital formats.Founded in 1985, it is a privately held company with its corporate headquarters in Sierra Village, CA
