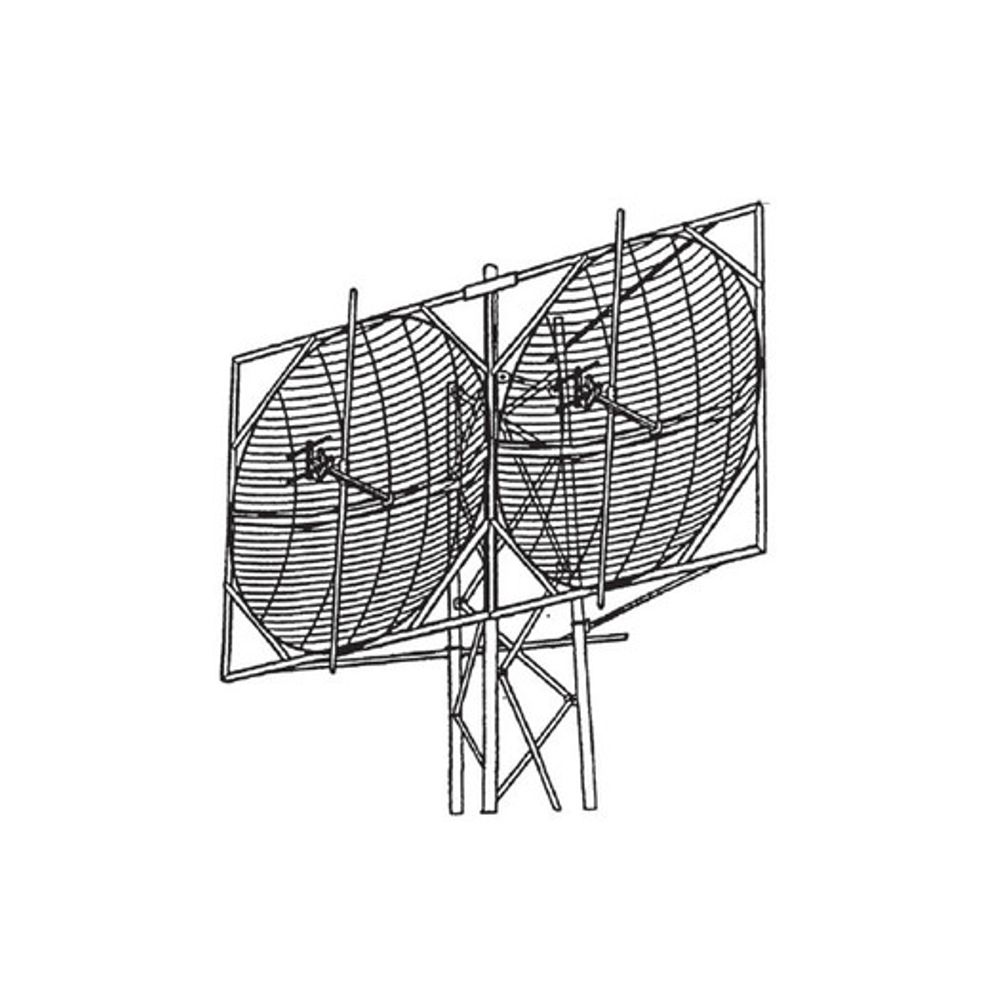

PB-82-BB Dual UHF Broadband 8′ Parabolic Antenna Array
$6,999.00
The PB-82-BB dual 8 foot parabolic UHF broadband receive antenna covers the entire UHF-TV spectrum. This array allows the CATV system operator to solve difficult reception problems and attain required gain or beam width. By using grid type, as opposed to solid reflectors it avoids wind loading issues, even in a dual array arrangement. This makes installations at higher elevations permissible with no change in tower construction requirements.
Ships in 4 to 6 weeks
- High gain, narrow beam width
- Broad bandwidth
- Dual 8′ array
- Grid type reflector minimizes wind load
- Arrays assemble on the ground using modular individual antennas
- Rugged construction for long life in harsh environments
- Hot Dip galvanized screen
- Gain: 21 dBi
- Channels: 14-83
- HPBW Horizontal: 5°
- HPBW Vertical: 12°
- VSWR Max: 1.6:1
- Impedance: 75 ohm
- Polarization: Horizontal
- Connector Type: F Connecto
Additional information
| Weight | 160 lbs |
|---|---|
| Dimensions | 102 × 102 × 36 in |
