Pico Digital/ATX - PD102R

Call for Price

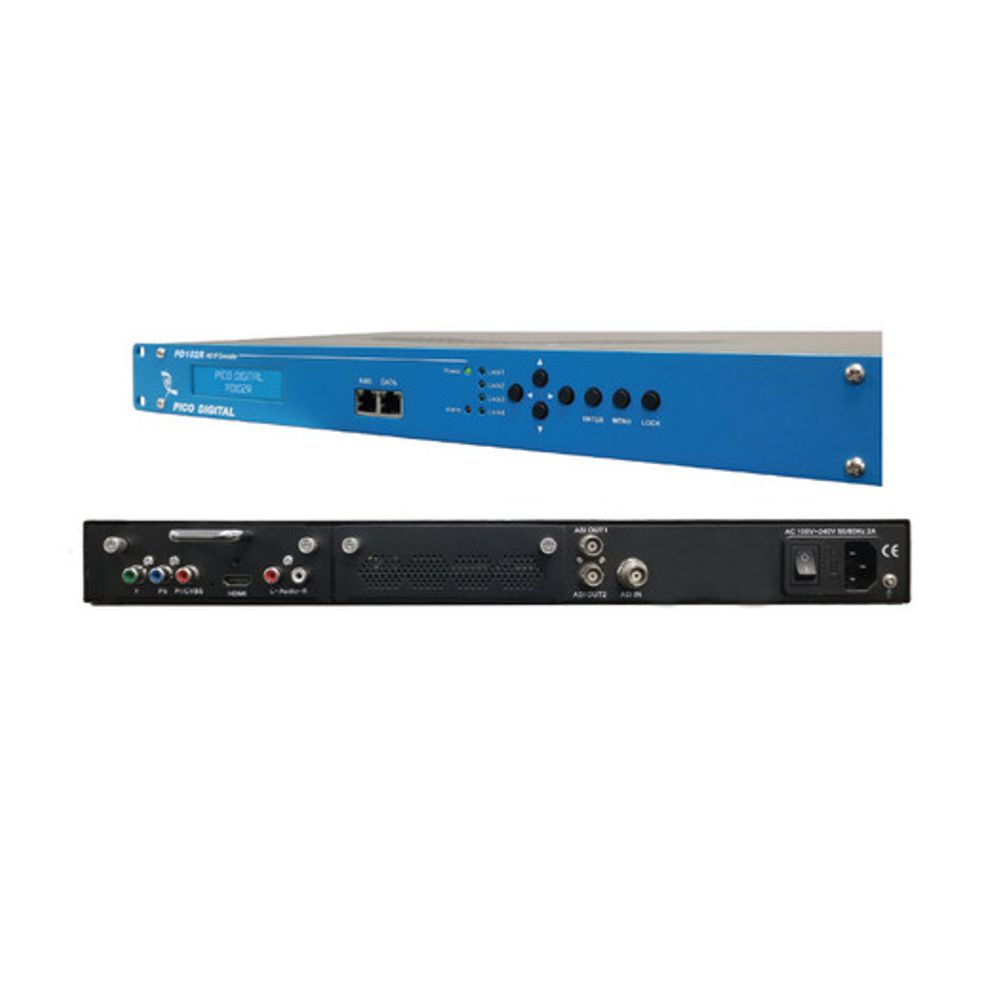

The PD102R HD encoder is an all-one device that integrates encoding (MPEG-2, MPEG-4/AVC H.264) and modulation functions to convert HDMI/YPbPr/CVBS signals to IP and ASI.

To meet customers’ various requirements, the PD102R is also equipped with one ASI input, and outputs with two ASI ports and one IP port.

Signal sources may include satellite receivers, closed-circuit television cameras, Blu-ray players, and antennas, among others. The PD102R output may be be received by TVs or set-top boxes.

Applications for the PD102R include digital signage in public transportation, retail, entertainment, hospitality, and dining establishments as well as monitoring, training, and education in enterprise, campus, and healthcare environments.

Safe Checkout


  • MPEG-2 HD and MPEG-4 AVC H.264 HD video encoding
  • DD AC3 (2.0), MPEG-4-AAC, MPEG-2-AAC, and MPEG-1 Layer II audio encoding
  • Supports DD AC3 (5.1 passthrough for HDMI interface only)
  • 1 HDMI/YPbPr/CVBS (Pr in) channel input
  • 1 ASI input for re-mux
  • Support CC (Closed Caption), (from CVBS source only)
  • Supports low delay
  • LCN (logical channel number) support
  • VCT (virtual channel table) support—for DVB-C and ATSC
  • Excellent modulation quality
  • LCD display, remote control and firmware
  • Secure management and configuration via an easy-to-use Web browser


Pico Digital/ATX

Committed to providing multimedia delivery solutions for the broadband, satellite, cable and broadcast industries. As a global leader in design, manufacturing and support of high-performance, high-value head-end, infrastructure, distribution and customer premise equipment, Pico Digital is committed to delivering cutting edge technology and products. Through their offerings, Toner Cable is able to bring unprecedented value to our customers – from the world's largest media companies to smaller, local service providers. Pico Digital is a privately held, employee-owned company headquartered in San Diego, CA,and is committed to the success of their customers, and solving real-world business challenges.

Additional information

Weight 1 lbs
Dimensions 1 × 1 × 1 in
