RLA270L L Band Rackmount Amplifier, 1 x 1 redundant
Call for Price Add to cart

RF Design - RLA270L L Band Rackmount Amplifier, 1 x 1 redundant

Call for Price

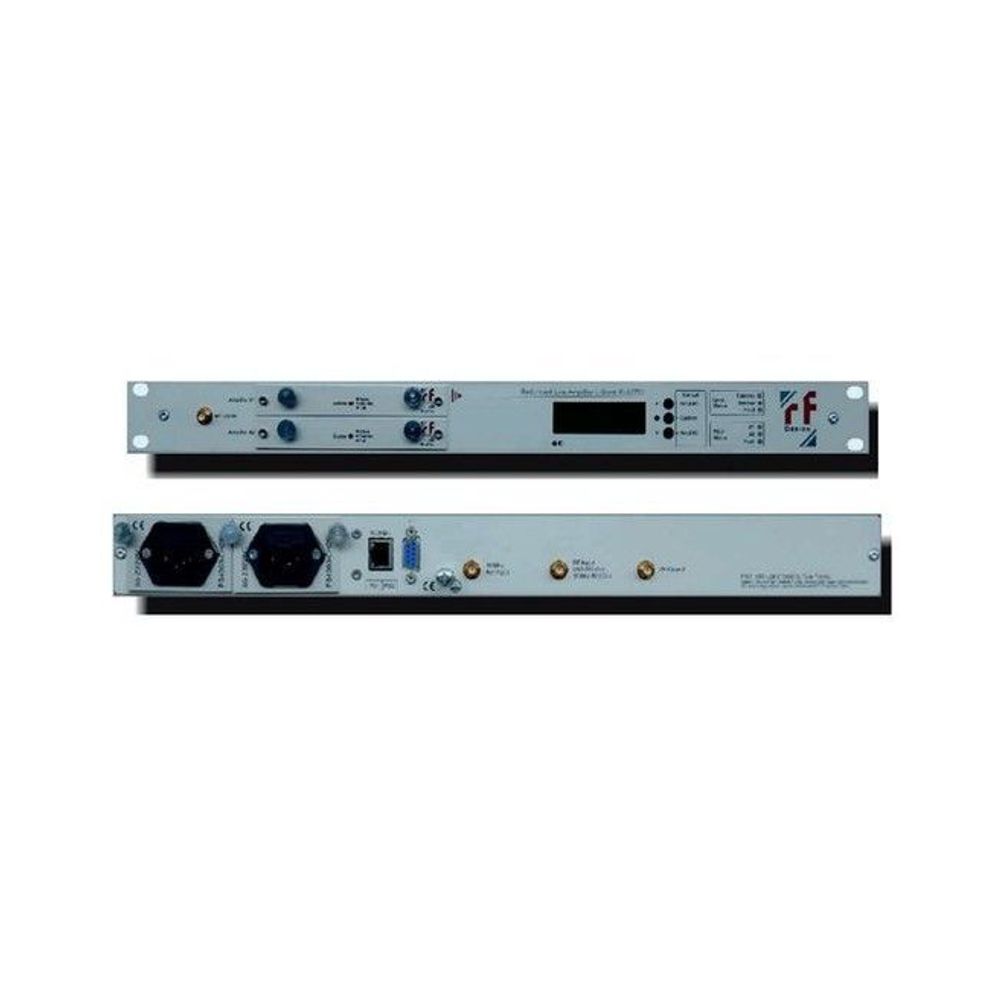

The RLA270L represents a 1:1 redundant L-Band line-amplifier (950…2150MHz) featuring variable gain, slope- equalization, 10MHz external reference and LNB-powering all in a compact 1RU/19″ design. This line-amplifier is perfectly suited for RF-distribution infrastructures in Teleports, Satellite Earth-Stations, as well as Broadcast- and Broadband facilities wherever accurate RF power, highest stability and availability is necessary. The RLA270L is equipped with two high dynamic 1:1 redundant operating amplifier-modules (hot-standby) each providing variable gain of max. 27dB so to achieve best performance within the network. The redundancy switching between the two amplifier-modules is done nearly interruption free within a switchover time of less than 5ms. The unit features adjustable gain (MGC/ AGC), slope-equalization, RF-power monitoring, 10MHz ref., LNB-powering and 1:1 redundant power-supply (hot-swappable). The RLA270L has a front-side LC-Display/keypads for user-friendly local configuration while front-side status LED´s indicating amplifier and power-supply status. Remote control and configuration can be done via its rear-side Ethernet-Interface (WEB-GUI, SNMP). The RLA270L is available with 50Ohm SMA(f) or 75Ohm F(f) connectors (see order-information).

Safe Checkout


  • Space saving and compact 1RU/19″ design
  • 1:1 redundant hot-standby operating amplifier-modules
  • Less then 5ms switchover between amplifier 1 & 2
  • Internal RF switch-module with latching type relays
  • Variable gain-adjust 0…27dB (MGC/AGC), 1dB steps
  • Supports slope-equalization 0…9dB, 1dB steps
  • Front-side monitoring-port (-20dB)
  • Permanent RF-power monitoring (Input/output) for both amplifier-modules
  • Threshold alarm function and switchable output limiter
  • 10MHz external reference input, rear-side 50Ohm SMA(f)
  • Switchable LNB-power supply (13/15/18V, 22kHz, 400mA)
  • LNB current monitoring (400mA) with alarm shut-off
  • 1:1 redundant power supply (hot swappable)
  • Local access & configuration via front side LC-Display/keypads
  • Front side status LED´s indicating amplifier- and power-supply status
  • Remote configuration via Ethernet-Interface, RS232/485 (WEB-GUI/SNMPv2c)


RF Design

RF Design's products are developed with highest quality levels focusing most excellent technical performance. Additionally RF Design is strong in designing customized solutions fullfilling exactly your requirements. Permanent research guarantees high quality and best performance. This includes the selection process of components and the ongoing design optimization of mechanical parts. Steady prototyping and intensive test periodes are ensuring best results in terms of functionality , specifications and performance.

Additional information

Weight 18 lbs
Dimensions 24 × 14 × 5 in
