- 3 M/E (1 M/E / 2 M/E / program / preview) production switcher
- 2 RU frame supporting:
- 36 inputs
- 12 assignable outputs
- 6 input or output bidirectional ports
- 4 keyers per M/E:
- 4 full effects keyers with lin/luma
- 4 assignable DVE engines (will give 8 independent boxes)
- Chromakeys available on all keys
- Transition keyer with dedicated ClipStores for key & fill
- Mask generator per keyer
- Separate wipe generator
- Matte generator
- Large internal ClipStore with 10 outputs holding 2 minutes of uncompressed HD video and audio content that is totally routable
- 4 floating resizing down stream keyers/mixing aux outputs without using M/E or Sub M/Es
- Fully flexible internal multiviewer with configurable 4 heads and 16 tiles
- Control:
- 66 GPI/Os
- 2x RS-422 ports
- 3 Ethernet ports for control panel and TCP/IP protocols
- USB ports for user/clip/system files import, export and backup

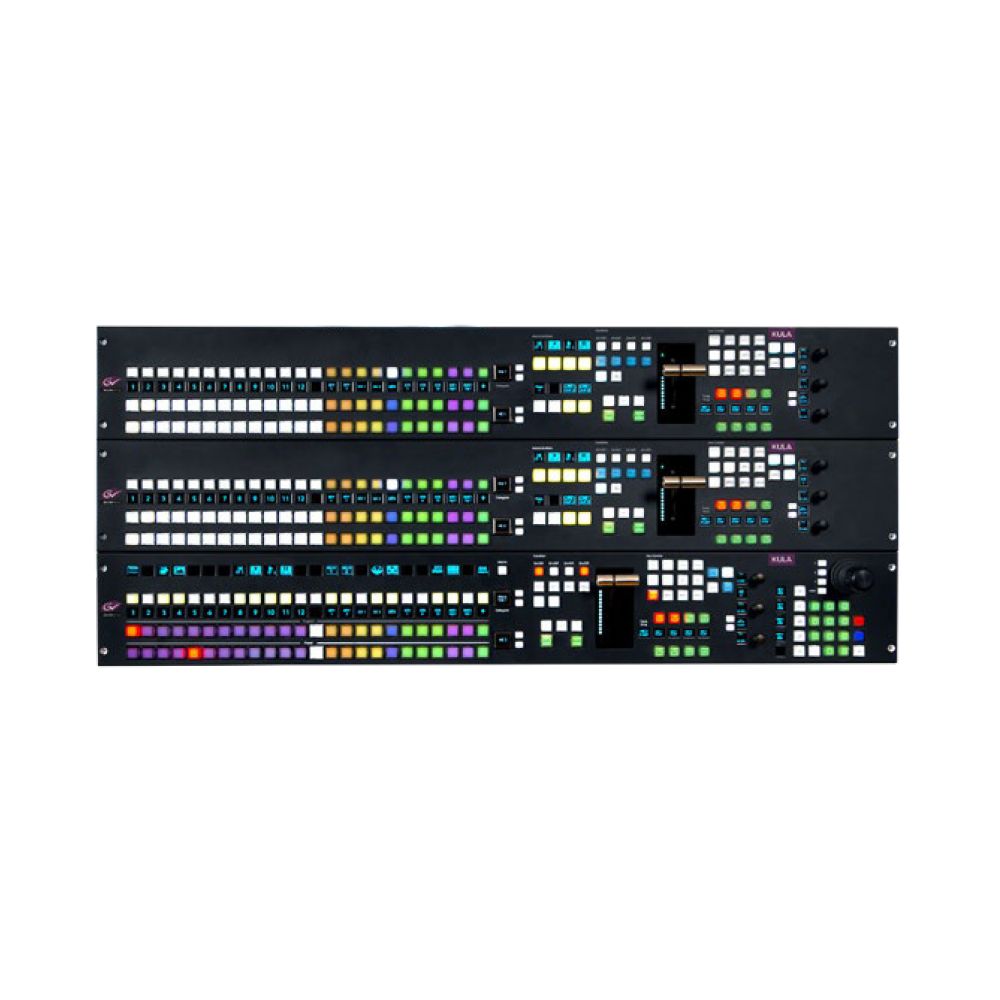

- New control panel design with clear OLEDs, RGB push buttons and shaft encoders for quick and granular control
- Sophisticated macro recall and edit capability
- Clearly labeled control panel with separate mnemonics for source, key and macro names
- Instant delegation buttons for macros or key and aux bus control
- T-bar with direction strip indicators
- 16 and 24 crosspoint button panel models available for easy operation
- Can be expanded by connecting other Kahuna Maverik modules
