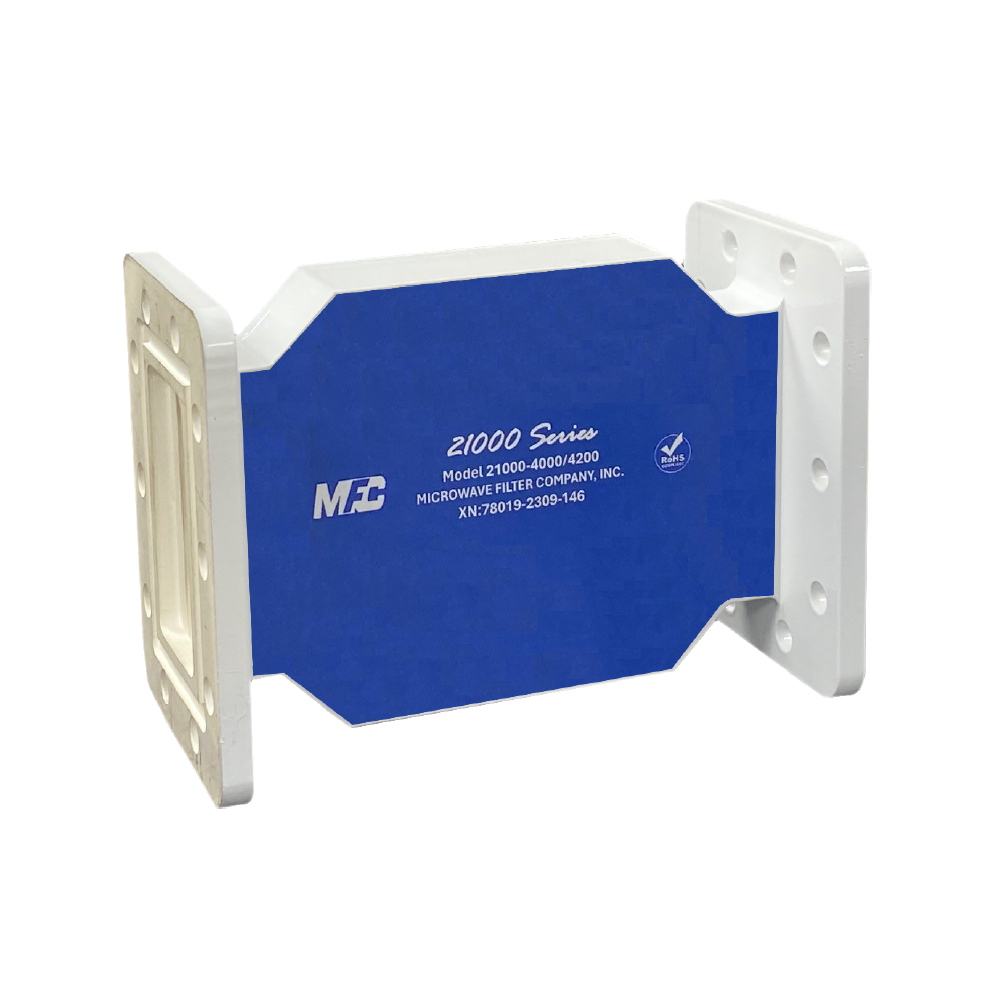

21000 Series 4000-4200 C-Band 5G Interference Filter
$470.00
Ideal for eliminating interference from 5G and virtually any other potential source of interference. Model 21000 Series combines innovative design techniques with very high performance.
Usually ships same business day1 Year Limited Warranty
| Passband | 4000-4200 |
| Insertion Loss | From 4000-4005 MHz: 1.4 dB MAX, +/- 0.2 dB |
| From 4005-4200 MHz: 1.2 dB MAX, +/- 0.2 dB | |
| Return Loss | 20 dB MIN |
| Group Delay Variation: | 1.45 nSEC TYP |
| +/- 0.5 MHz from Any frequency within the | |
| passband | |
| Rejection: | 70 dB MIN from 3700 MHz to 3900 MHz |
| 60 dB MIN from 3900 MHz to 3980 MHz | |
| 30 dB MIN from 3980 MHz to 3985 MHz | |
| 25 dB MIN @ 4230 MHz | |
| 80 dB MIN from 5800 MHz to 7075 MHz | |
| Flanges: | CPR229G (Input) |
| CPR229F (Output) | |
| Dimensions: | 5.49″ x 3.88″ x 2.75″ |
| Weight | 1.5LBs |
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 5.49 × 3.88 × 2.75 in |
Brand
Microwave Filter Company
"COMMITTED TO EXCELLENCE" SINCE 1967 MIcrowave Filter Co.,has been a leader in the design, development and manufacture of high quality filter products for more than 45 years. They offer a complete line of CATV headend channel deletion filters and networks, bandpass filters and diplexers for wireless and PCS applications. All MFC filters are produced within our modern 40,000 square foot facility by a staff that is “Committed to Excellence”.
