FTTB-1218-L1W One Way Fiber Node
$239.00 EACH Add to cart

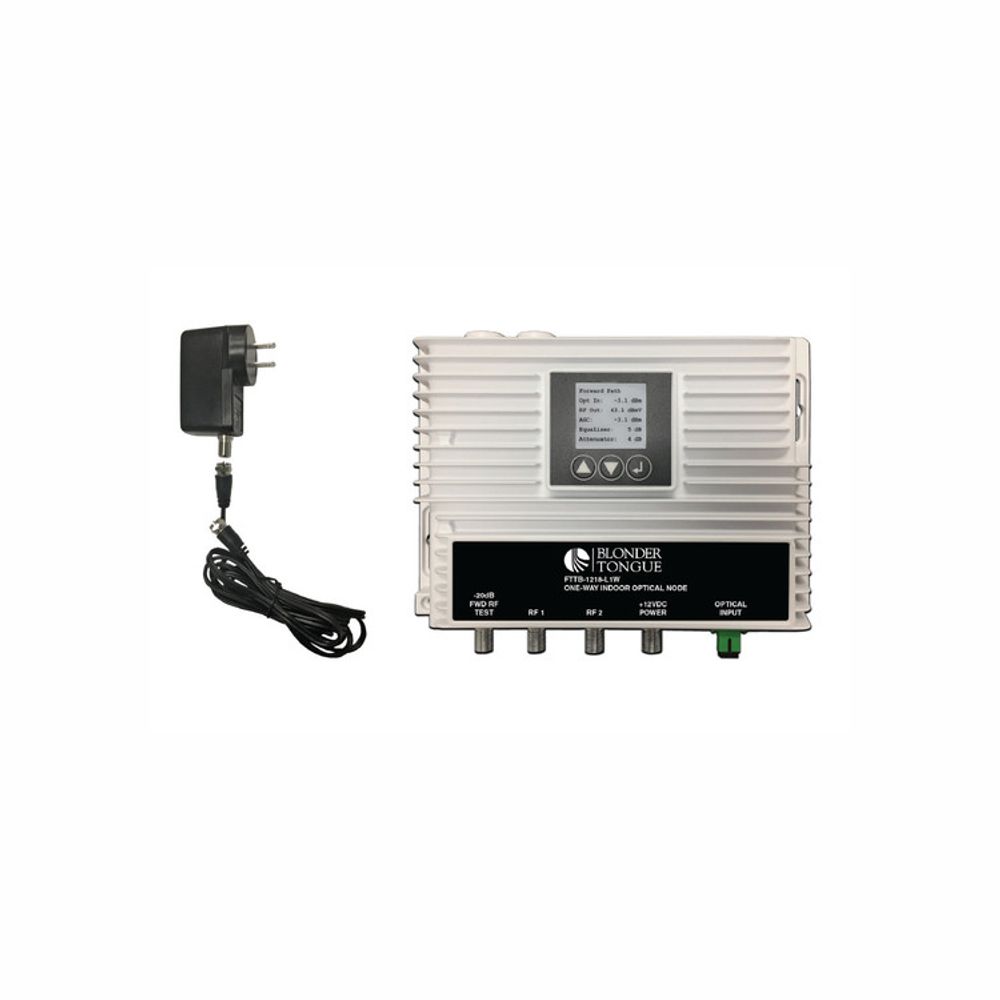

Blonder Tongue - FTTB-1218-L1W One Way Fiber Node

$239.00 EACH

The FTTB-1218-L1W (One-Way Indoor Optical Node) converts the optical signal received from the headend into dual +44 dBmV RF outputs with automatic gain control (AGC) over an optical input range of -4 dBm to + 3 dBm.

The compact housing includes an optical receiver with an LCD display, control keys, RF AGC, adjustable attenuator, adjustable slope, and RF amplifier providing high RF output and excellent performance up to 1218 MHz bandwidth.

Ships in 1 to 2 weeks
Safe Checkout

Description

  • Optical and RF parameters configured via user-friendly LCD menu with three key navigation
  • 1218 MHz forward RF bandwidth
  • High performance and low power consumption GaAs technology
  • Dual +44 dBmV AGC’d RF outputs
  • 1210-1650nm SC/APC optical input
  • Variable attenuator and slope controls
  • Die-cast aluminum housing for indoor installation
  • -20 dB RF test port
  • One 12 VDC “F” connector input port for local/remote powering

Brand

Blonder Tongue

Solutions for All Your Applications Blonder Tongue Laboratories, Inc. offer customers more than 130 years of combined engineering and manufacturing excellence with a solid history of delivering reliable, quality products. As a leader in the field of Cable Television communications, they provide system operators and integrators serving the cable, broadcast, satellite, IPTV, institutional and professional video markets with comprehensive solutions for the provision of content contribution, distribution and video delivery to homes and businesses. The B-T designs, manufactures, sells and supports an equipment of SD/HD digital video solutions, as well as core analog video and high speed data solutions for distribution over coax, fiber and IP networks. For over 60 years, Blonder Tongue has customized cost-effective solutions for the broadcast, hospitality, education, healthcare, government, sports, entertainment, and enterprise markets. From supporting major broadcast networks to campuses, hotels, stadiums, and airports Blonder Tongue has its customers’ needs covered. Blonder Tongue was founded in 1952, in Old Bridge, NJ by Ike Blonder and Ben Tongue. The company started building Amplifiers or boosters for TV antennas and also building TV antennas. Ike was awarded a patent for inventing the log-periodic television antenna. In the following years, Blonder Tongue expanded their range of products to support the growing Cable TV industry. In 1972, Toner Cable became a stocking distributor for Blonder Tongue and today is their largest stocking distributor worldwide.

Additional information

Weight 2 lbs
Dimensions 12 × 8 × 5 in
