H30-A3 EVOLUTION ATSC 3.0 Signal Level Meter
$2,239.00 Each Add to cart

Televes - H30-A3 EVOLUTION ATSC 3.0 Signal Level Meter

$2,239.00 Each

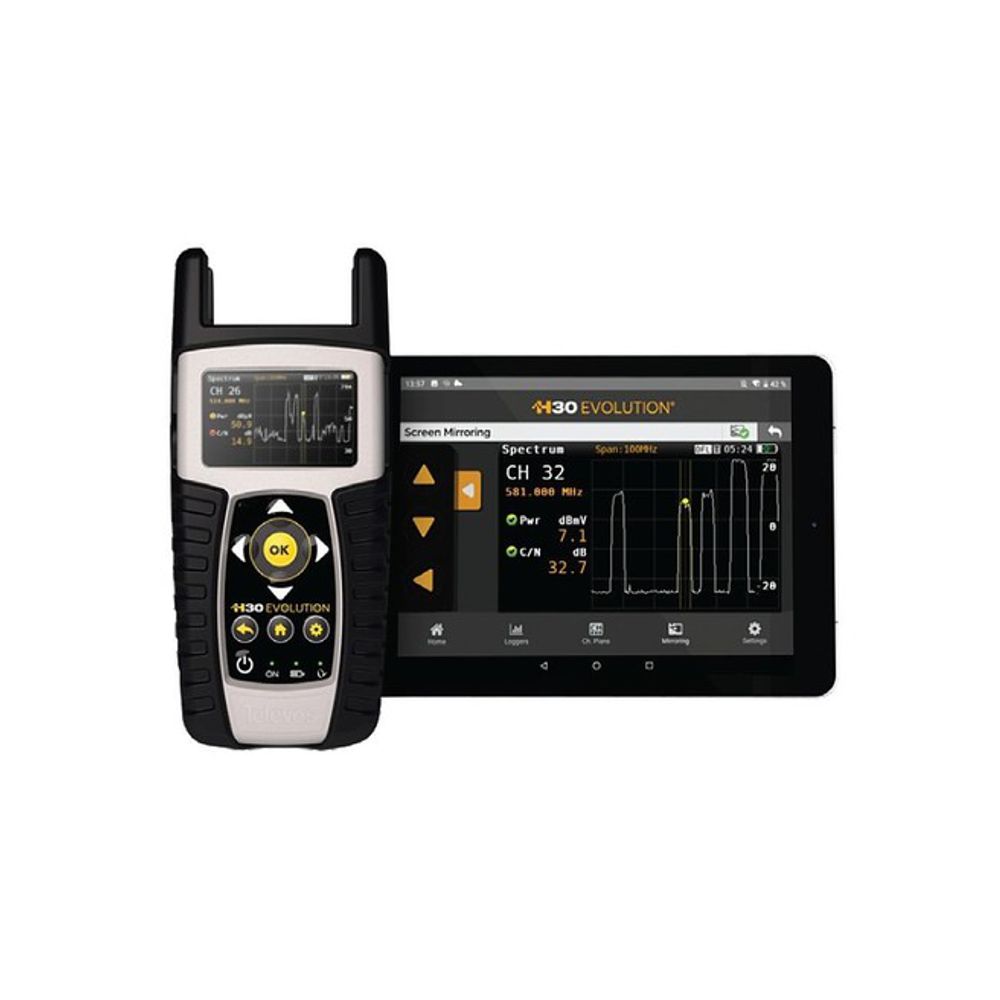

A full features SLM-Spectrum Analyzer that measures ATSC 3.0 broadcast signals, 8VSB, QAM, Analog NTSC, Wi-Fi, HEVC, IPTV and has remote access via Bluetooth, Ethernet and Wi-Fi.

With the capability to do multiscreen display, you can access it from anywhere to stay on top of your system performance and troubleshoot issues that may develop.

The H30E-A3 is a smart SLM that enables you to connect to it via Bluetooth, Ethernet or Wi-Fi to perform remote monitoring and control from anywhere.

Ships in 1 to 2 weeks
Safe Checkout

Description

  • 5-1000 MHz Bandwidth
  • 125 KHz Resolution
  • -15 to 50 dBmV Range Digital
  • -35 to 65 dBmV Range Analog
  • ATSC 3.0, 8VSB, QAM, Analog
  • Bluetooth, Ethernet, Wi-Fi
  • USB
  • 400 MB Internal Memory
  • MER & BER Measurements
  • Constellations QAM64 & 256
  • 2.8” TFT Display
  • Rechargeable Li Battery
  • Scale 5 & 10 dB/Div
  • Image Display (Unscrambled)
  • Tuning by Frequency or Channel
  • Weighs Only 18 oz

Brand

Televes

Providers Of Industry-Leading Hand-Held Meters And Analyzers Televes believes in delivering superior quality products through a truly “state-of –the-art” manufacturing process, as well as vigorous post-production certification testing. They stay true to their company motto: “Quality is manufactured, not controlled”.Their hand-held meters and analyzers, available through Toner Cable, provide lab-quality real time digital processing with an intuitive user interface, which reduces the learning curve. Televes Analyzers provide unrivaled speed and mathematical precision for all your measurements needs.

Additional information

Weight 1.25 lbs
Dimensions 2 × 3.9 × 6.9 in
