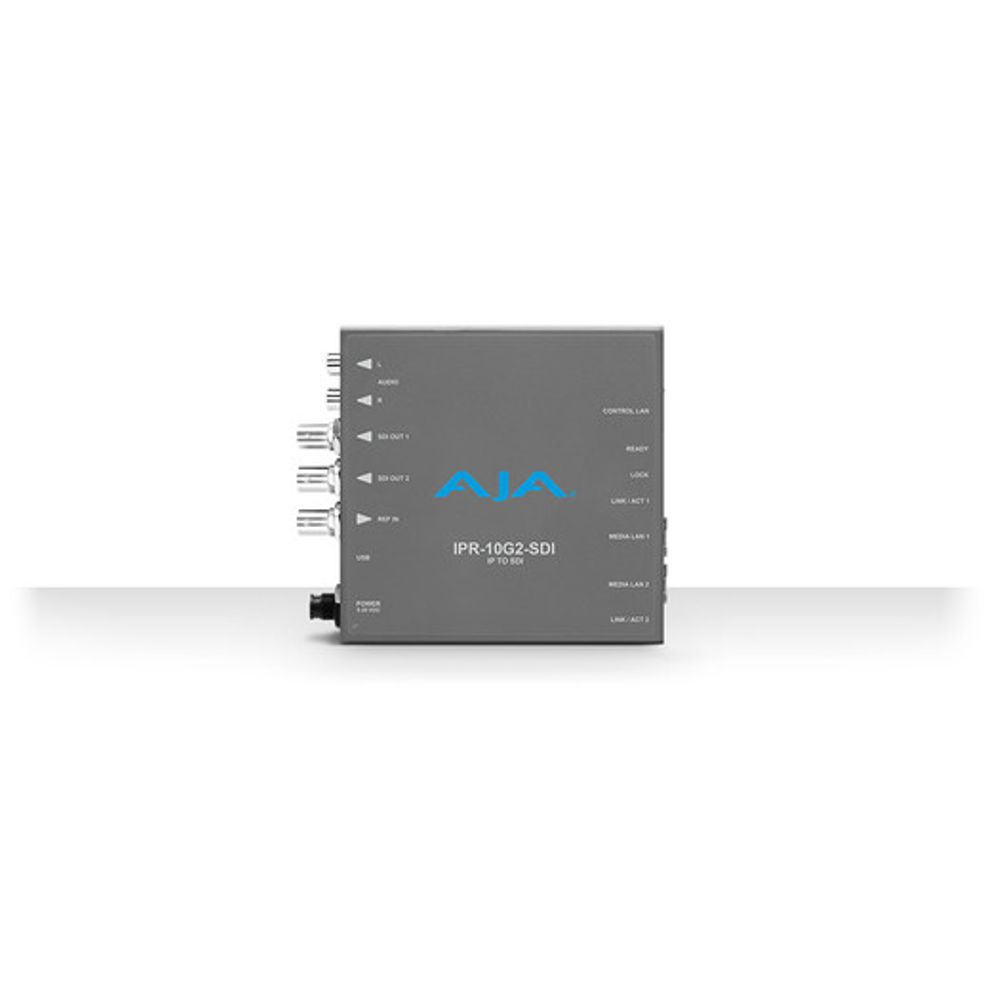

IPR-10G2-SDI Bridging HD SMPTE ST 2110 Video and Audio to 3G-SDI
$1,359.75 Each Add to cart

AJA - IPR-10G2-SDI Bridging HD SMPTE ST 2110 Video and Audio to 3G-SDI

$1,359.75 Each

IPR-10G2-SDI provides monitoring of HD SMPTE ST 2110 signals across 10 GigE to two 3G-SDI ouputs.

It receives SMPTE 2110 over 10 GigE connectivity, formats the data for output over 3G-SDI, and the associated audio from the video stream is extracted, synchronized, and embedded into the 3G-SDI signal and also output on an analog RCA interface.

The IPR-10G2-SDI features 2x 10 GbE SFP+ cages allowing “hitless switching”, providing redundancy protection for critical distribution and monitoring applications.

The IPR-10G2-SDI also offers 1x Reference In via BNC. This makes it ideal for integrating into existing basebands environments such as master control, a truck, or an edit suite.

Ships in approx. 1 week
Safe Checkout

Description

IPR-10G2-SDI extracts a SMPTE ST 2110 essence from an incoming IP stream and presents it for display on SDI devices.  Providing two SFP+ cases for protection with “hitless switching”. Its rugged, fanless, Mini-Converter design is ideal for placement in a wide range of display scenarios, from studios to field.

Key features:

  • SMPTE ST 2110 audio, video receiver
  • Supports HD up to 60p, YCbCr 4:2:2
  • Rugged, fanless design
  • 2x 10 GigESFP+ cages for media LAN (providing support for “hitless switching) with status light
  • 1x 1 GigERJ45 socket for control LAN with status light
  • 2x 3G-SDI Outputs
  • Full 10-bit pixel processing pipeline
  • Embedded SDI audio output (up to eight channels)
  • 2x RCA analog audio output
  • 1x BNC Reference In
  • 1x mini-USB port for initial network configuration with AJA eMini-Setup software
  • Complete control interface on any web browser from a built-in webserver
  • Customizable control with AJA REST API
  • 5-year international warranty and support

Brand

AJA

Digital Video Solutions AJA Video Systems is a leading manufacturer of high-quality and cost-effective digital video acquisition, interface, conversion solutions for professional broadcast, production and post-production. AJA simplifies professional digital video workflows with a line of award-winning products designed and manufactured in Grass Valley, California. AJA was founded by engineer John Abt in 1993. Today the company employs over 200 people worldwide, building industry-leading video capture cards, digital recording devices, video routers, frame synchronizers and scalers, digital converters. AJA’s engineering has consistently supported advancements in broadcast technologies as well as format standards to provide video professionals with future-proof workflow solutions.

Additional information

Weight 3 lbs
Dimensions 9 × 7 × 3 in
