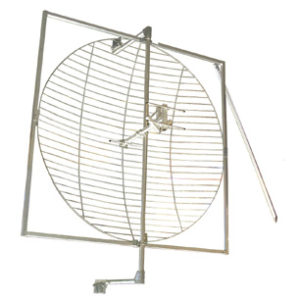

PB-61-BB High Gain UHF Broadband 6 foot Parabolic Antenna

$2,660.00

The PB-61-BB 6 foot parabolic UHF broadband receive antenna covers the entire UHF-TV spectrum.  Its versatility allows the CATV system operator to solve difficult reception problems by using it on its own or in an array to attain required gain or beam width.  By using grid type, as opposed to solid reflectors it avoids wind loading issues, even in a dual array arrangement.  This makes installations at higher elevations permissible with no change in tower construction requirements.

Usually ships same business day
Safe Checkout

  • High gain, narrow beam width
  • Broad bandwidth
  • 6′ diameter
  • Grid type reflector minimizes wind load
  • Arrays assemble on the ground using modular individual antennas
  • Rugged construction for long life in harsh environments
  • Hot Dip galvanized screen
  • Gain: 15 dBi
  • Channels: 14-83
  • HPBW Horizontal: 20°
  • HPBW Vertical: 17°
  • VSWR Max: 1.6:1
  • Impedance: 75 ohm
  • Polarization: Horizontal
  • Connector Type: F Connector

Additional information

Weight 100 lbs
Dimensions 80 × 55 × 30 in

Brand

Wade Antenna

Wade Antenna specializes in the VHF/UHF cable television antennas and Wi-Fi 802.11 telecommunications antennas. The Wade Log Antenna was developed over 50 years ago and was tested by the Grand Alliance in 1996 and found to be the optimum antenna for digital off-air reception. With progressive leadership that emphasizes customer service through sales, marketing, research and innovation, Wade delivers unrivalled service and satisfaction alongside leading edge technology.
