T9261-D OTT streaming media decoder that supports Ultra High Definition (UHD) 2160P HEVC , 1080P AVC and 1080i MPEG2. IP streaming protocol
$3,188.00 Each Add to cart

T21 - T9261-D OTT streaming media decoder that supports Ultra High Definition (UHD) 2160P HEVC , 1080P AVC and 1080i MPEG2. IP streaming protocol

$3,188.00 Each

The T9261-D is an industry-leading live OTT streaming media decoder that supports Ultra High Definition (UHD) 2160P HEVC , 1080P AVC and 1080i MPEG2. 1 IP streaming protocol support includes source specific UDP/RTP with IGMP v3, SRT, Zixi, RTMP, RTSP, HLS, DASH, TCP with file capture and playback from disk. Network Protocol Translation provides input to output translation from one protocol to the other.

Boasting two independent Gigabit Ethernet ports, the T9261-D is ideal for use across private and public networks. Network security is a priority at T-21. All T-21 devices include the latest network security patches, HTTPS web server plus user options to disable SSH, SAMBA and PING. OpenVPN is included and can be used without the need for an optional VPN appliance. T-21 offers ongoing patches that include network security updates with new firmware features included for a modestly priced SLA2.

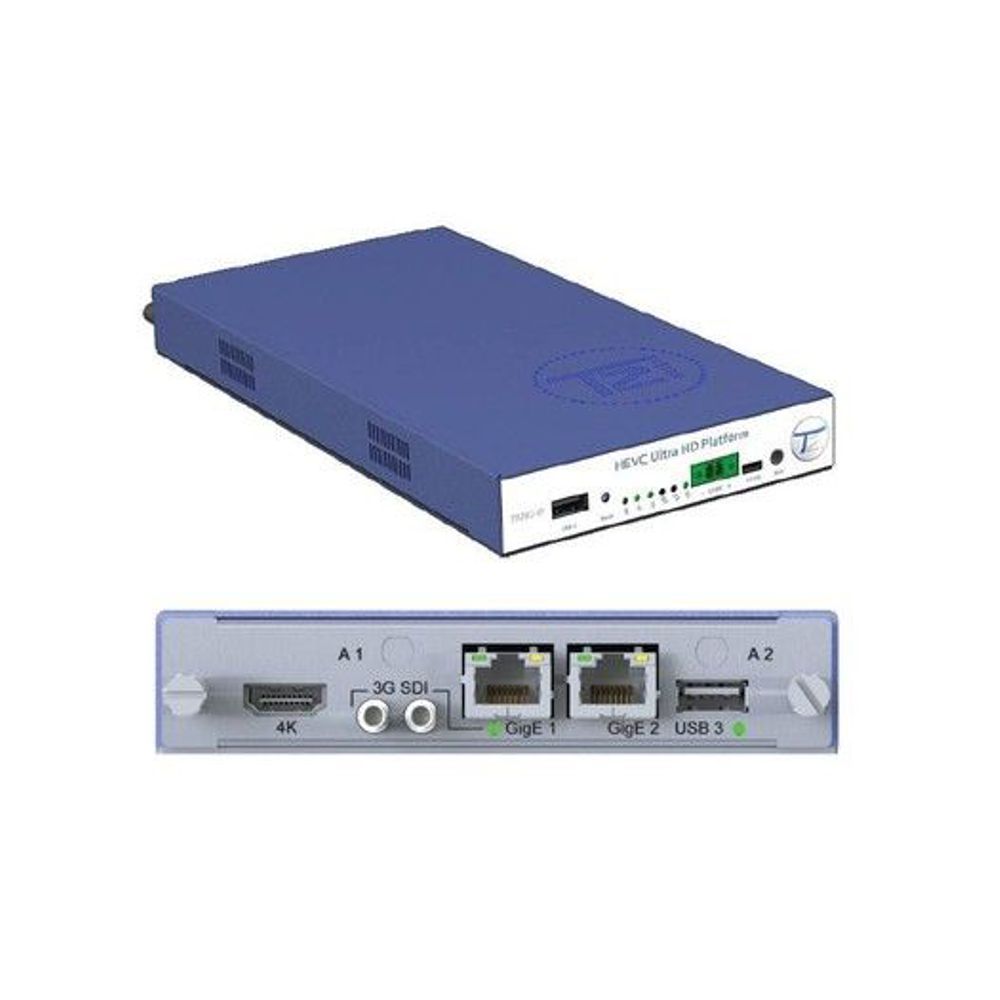

The T9261-D is designed for broadcast and professional decoding. The video interfaces include two mirrored 3G HD-SDI outputs on HDBNC and one HDMI 1.4 output. Optimized to decode very high bit-rate 2160P Ultra High Definition (UHD) bitstreams, the T9261-D decodes 1080P AVC (H264), 1080i MPEG 2 with optional support for 2160P HEVC (H.265). Ancillary data support for closed captions with OSD open captions and SDI embedding is a standard feature.

Audio decode support for up to four PIDs or 8-channels . Audio CODEC support includes MPEG 3 Layer 1/2/3, AAC-LC/HE with optional Dolby Digital decode with passthrough to HDMI and HD-SDI embedding.

Managing and monitoring the T9261-D is facilitated via the Web Server, SNMP and REST APIs.

Usually ships same business day
Safe Checkout

Description

Streaming and File Decode

Media playback from streaming, on-board SD card, optional USB, mSATA hard drive or mounted storage enables playback of 4K or Ultra HD HEVC, 1080P AVC or 1080i MPEG 2. Container support includes MPEG 2 Transport Stream, ISO 14496 base media file format (BMFF), Matroska, MOV and raw Elementary streams on both the inputs and outputs. Network protocol support includes UDP/RTP, TCP, RTMP, RTSP, HLS and DASH. Zixi feeder and receiver are options for public network applications. The T9261-D supports streaming via Gigabit Ethernet, optional mPCIe WiFi or LTE interfaces.

The T9261-D Web UI includes a media analysis tool along with metadata and thumbnail support of streaming and mounted media.

Network Protocol Translation

Network protocol translation applications are increasingly becoming more common. An example would include connecting to a publicly available live camera via RTSP, decoding for visual confirmation, and turning the signal around via UDP for distribution on a private LAN.

Streaming and File Transcode

Input 4K or Ultra-HD HEVC, AVC or MPEG 2 and transcode to AVC or MPEG 2. Resolution, bit rate, CODEC and container adaptation are supported. Network protocol support includes UDP/RTP, TCP, RTMP, RTSP, HLS and DASH. Zixi feeder and receiver are options for public network applications. The T9261-D supports streaming via Gigabit Ethernet, optional mPCIe WiFi or LTE interfaces.

Brand

T21

T-21 Technologies is focused on next generation stream and file based High Efficiency Video Coding (HEVC) decode and transcode solutions for Broadcast, Procast, Intelligent Transportation (ITS) and Security markets. Primarily focused on 4k Ultra HD (UHD) applications, the T9261 family also supports Advanced Video Coding (AVC) and MPEG 2 compressed bit streams. The T9261 supports live streaming via UDP, RTP, RTSP, TCP, and DASH. Third party advanced forward error correction options are available.

Additional information

Weight 3 lbs
Dimensions 13 × 9 × 3 in
