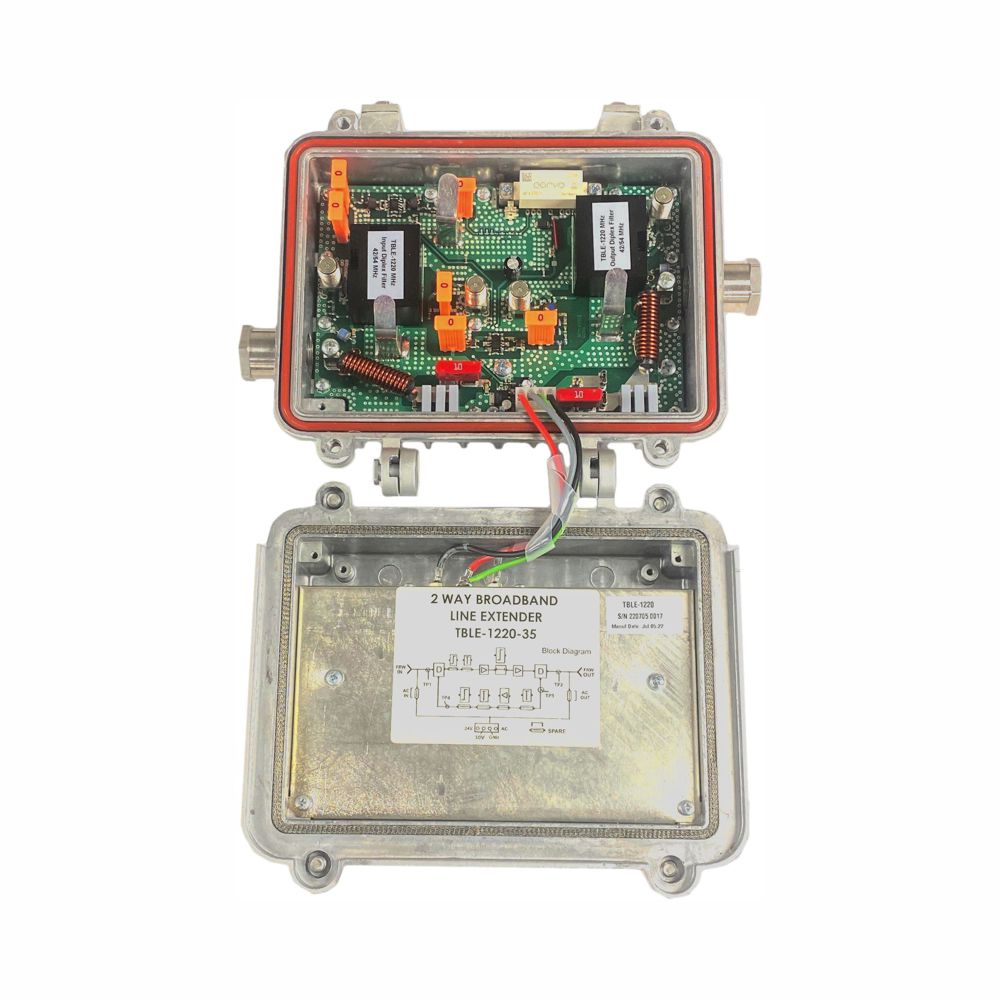

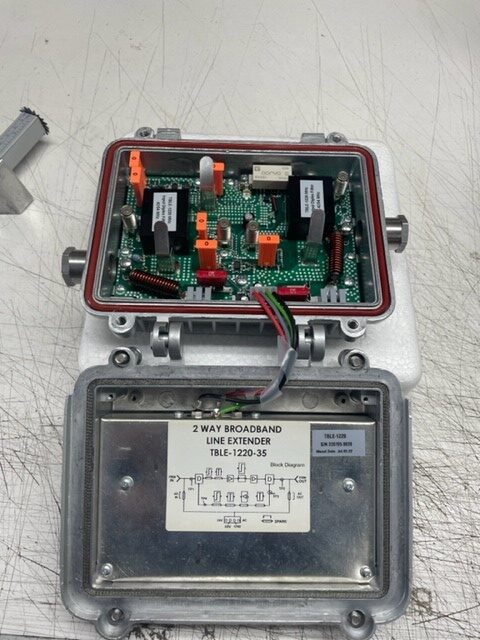

TBLE-1220-35 2 Way Broadband Line Extender

Toner Cable - TBLE-1220-35 2 Way Broadband Line Extender

$417.00

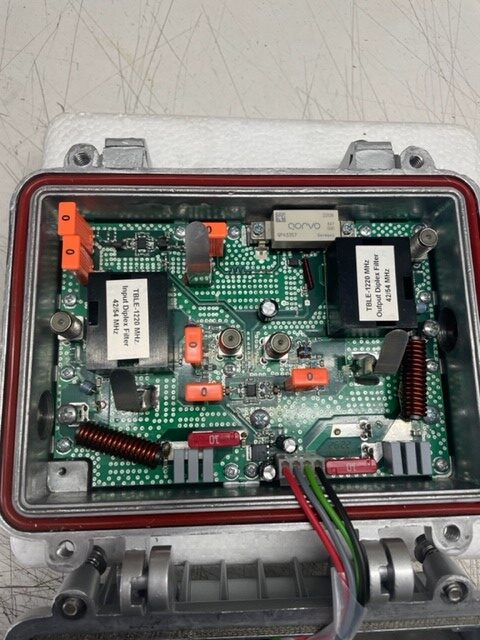

The Toner TBLE-1220-35 Line Extender Amplifier is a new version of our TBLE series amplifiers with many new features. The TBLE-1220-35 has Gallium Arsenide (GaAs FET) hybrid providing high RF output while maintaining low distortion characteristics. The amplifier has a 5-1220 MHz bandwidth which is ideal for systems deploying DOCSIS 3.1 or planning on deploying it in the future. The TBLE-1220-35 line extender also features field installable diplex filter sets that allow upgrading from 42/54 MHz split to 85/120 MHz or 204/1220 MHz as needed. The amplifier is supplied with stock 42/54 MHz diplex filters.

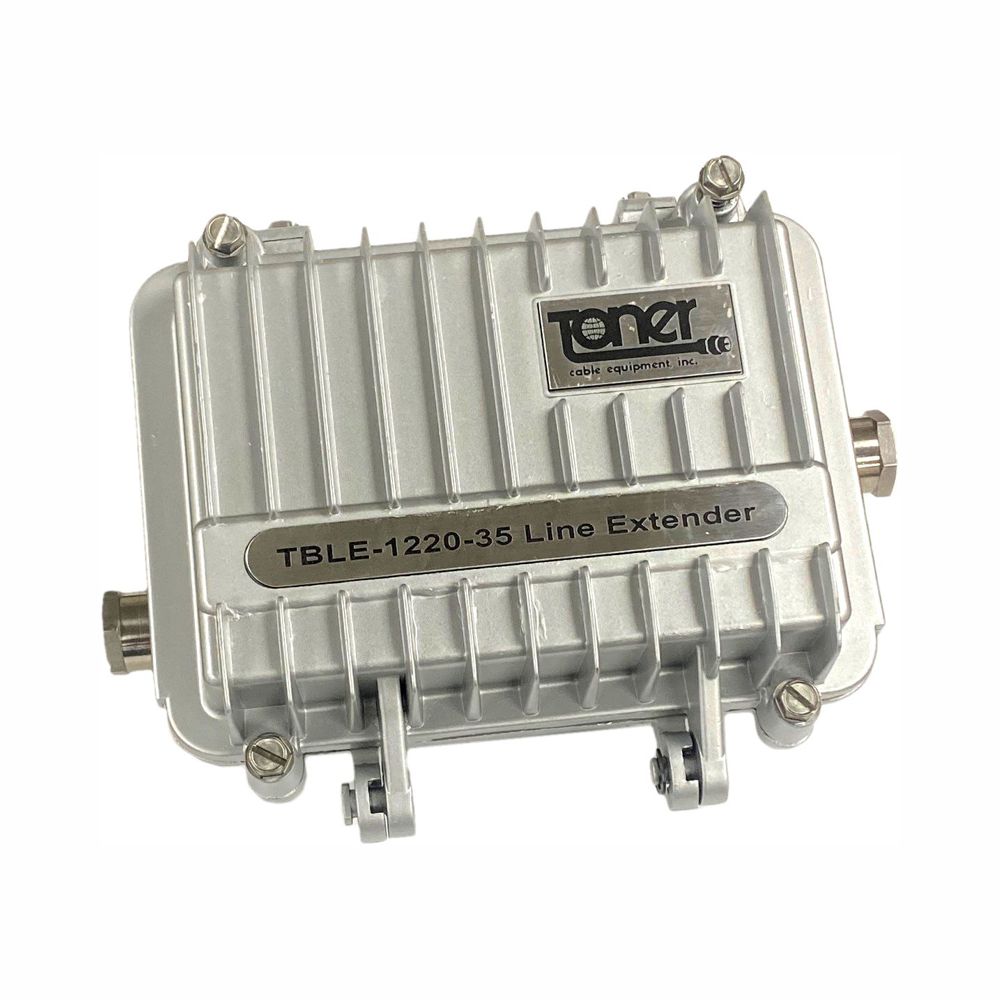

Built in a rugged die cast aluminum housing with an IP-65 rating. The amplifier has a switching mode power supply for line powering from 30 to 90 VAC. Forward gain of this amplifier is 35 dB and it has 25 dB of reverse gain. Setup and control of the amplifier is by use of industry standard JXP style plug in attenuator pads in both the attenuation and equalizer sockets where the attenuator is turned into an equalizer. This simplifies setup and reduces the need for separate devices. JXP-* pads are available from 1 to 26 dB in 1 dB steps.

Usually ships same business day
Safe Checkout

  • Bandwidth to 1220 MHz
  • Gain of 35 dB Forward, 20 dB Reverse
  • Three Diplex Filter Options
  • GaAs FET Hybrid
  • DOCSIS 2.1 Bandwidth Compliant
  • 5/8-24 CH Type Connections in a Steel Bushing
  • Surge Protection On All Ports
  • -20 dB Test Ports
  • JXP Style Plug In Pads
  • 30 to 90 VAC Powering (Only 8 Watts)
  • IP-65 Rated Housing, -100 dB RFI
  • 6 kV Surge Protected

Brand

Toner Cable

Toner Cable Digital & Analog Electronic Equipment Founded in 1971 by Bob Toner, Toner Cable was an early innovator of electronic multi-taps and antenna products. Over the next thirty years, Toner Cable continued to develop as a leading cable equipment provider, growing into the computer systems and satellite services industries. Today Toner Cable continues to be a provider and manufacturer of digital and analog electronic equipment including headend electronics, broadband video and radio frequency distribution products, TV antennae, satellite, fiber optic and test equipment, as well as I/P Ethernet network tools. We'd like to invite you to browse our extensive line of fiber optic equipment, including testing tools, enclosures, cables, splicing units, power supplies, as well as data and Ethernet cables.

Additional information

Weight 4 lbs
Dimensions 14 × 9 × 5 in
