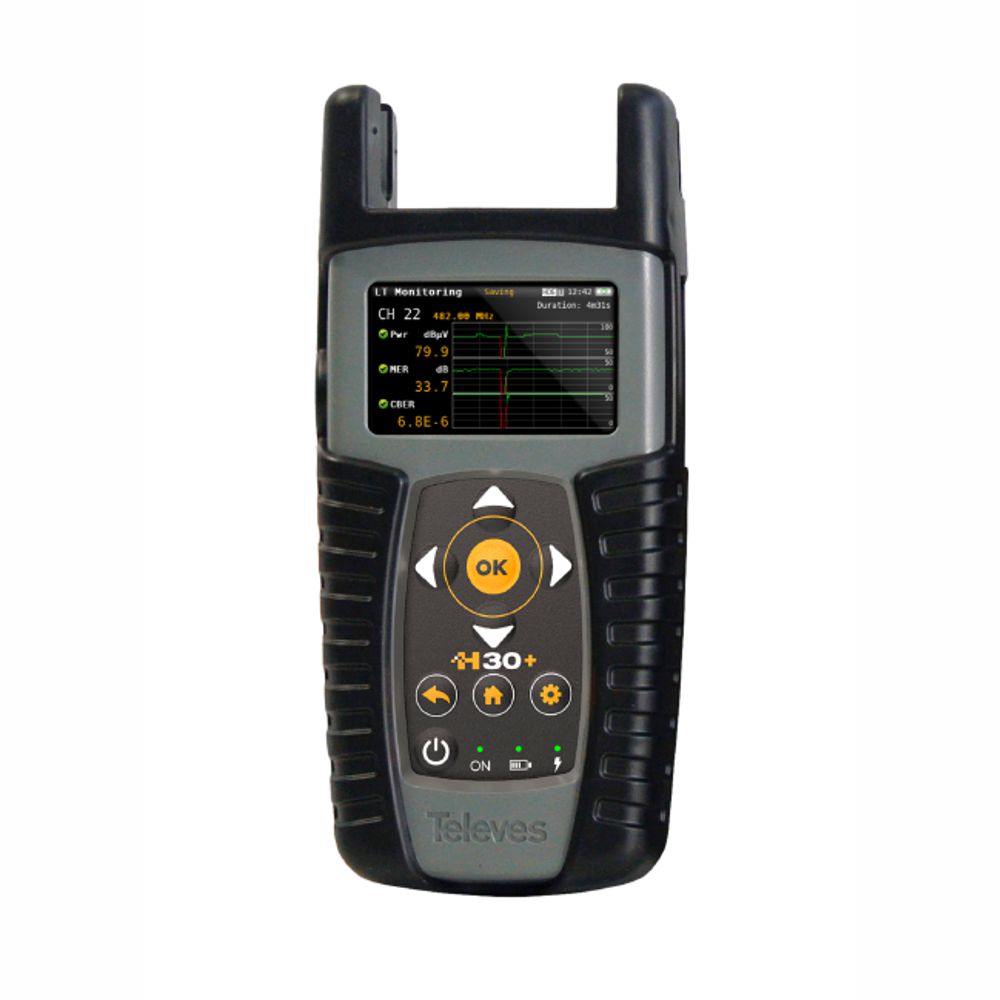

H30+ QAM/8VSB Signal Level Meter

$1,545.00

All the functions you need, also in CATV cable systems
The H30+ is a lightweight, compact and robust equipment that includes a full range of tools and functionalities to successfully perform installation, maintenance and troubleshooting tasks in both analogue networks and digital networks with ATSC and QAM channels. It stands out for incorporating automatic monitoring of the desired channel, double-check connectivity and the information about a QAM channel program content, among other powerful functions.

Operating the meter is more flexible thanks to its multiscreen system: the user can manage it remotely and display its contents on their own mobile device (Android, iOS or PC). Wi-Fi and Bluetooth connectivity will let you work with all the conveniences of a wireless connection. In addition, to make the use of the smartphone even more natural, a universal bracelet is provided for devices up to 6″.

Full Description & Specs
Usually ships same business day1 Year Limited Warranty
Safe Checkout

  • Professional RF signal analyzer: decoding and display of video and audio parameters of received 8VSB and QAM signals
  • Multiscreen system with touch control
  • Wi-Fi and Bluetooth connectivity
  • Real-time digital processing
  • Channel scan
  • System scan
  • MER
  • BER
  • Constellation
  • Light-weight handheld meter
  • Tilt Function
  • C/N
  • With Wi-Fi / IPTV analyzers and HEVC display as options
  • Automatic parameter detection: the H30+ automatically detects signal type (Analog/Digital) and parameters to be measured (constellation, symbol rate, etc.)

Additional information

Weight 2.5 lbs
Dimensions 10 × 6 × 6 in

Brand

Televes

Providers Of Industry-Leading Hand-Held Meters And Analyzers Televes believes in delivering superior quality products through a truly “state-of –the-art” manufacturing process, as well as vigorous post-production certification testing. They stay true to their company motto: “Quality is manufactured, not controlled”.Their hand-held meters and analyzers, available through Toner Cable, provide lab-quality real time digital processing with an intuitive user interface, which reduces the learning curve. Televes Analyzers provide unrivaled speed and mathematical precision for all your measurements needs.
