S7B-1616-LKI L Band 8 X 8 Matrix Switch expandable
Call for Price Add to cart

RF Design - S7B-1616-LKI L Band 8 X 8 Matrix Switch expandable

Call for Price

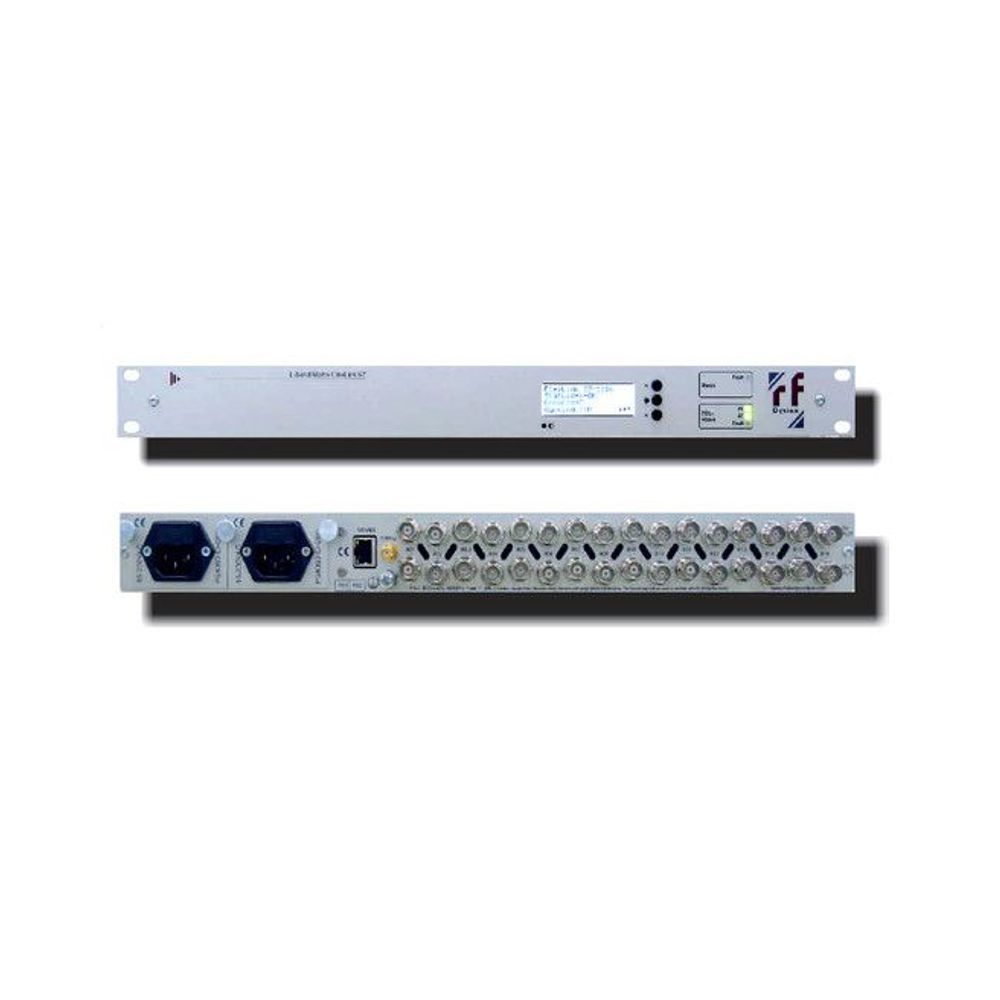

The FlexLink S7B-1616 represents a professional L-Band Switch Matrix designed in a compact and space saving 1RU/19″ rackmount chassis. The standard unit comes with a 8×8 input/output configuration while expansion is easily possible to a maximum of 16×16 (increments of 4) simply by purchasing and activating the relevant license-key. The FlexLink S7B-1616 supports symmetrical or asymmetrical configurations such as 8×8, 8×12, 12×8, 8×16, 16×8 to a maximum of 16×16.

The new FlexLink S7B-1616 is a future proof Switch Matrix now with widened bandwidth of 850 2450MHz, also supporting the extended L-Band frequency range (850-2450MHz) making it a perfect solution also for KA Band and HTS applications. The unit features an efficient, flexible and reliable solution for today’s and future L Band signal management and allows to switch/route any input to any or all outputs without limitations and interferences, while all combinations of inputs and outputs are configurable locally and remotely. The FlexLink S7B-1616 supports variable gain adjustment, slope-equalization, RF power monitoring as well as dual redundant power-supply. Furthermore the unit features switchable LNB-supply and a 10MHz external reference signal input.

Isolation, linearity and frequency response are at the highest level assuring excellent and stable operation with superior RF performance and signal quality. The unit is available with 50 Ohm or 75 Ohm connectors for the inputs and outputs and upon request it can also be equipped with optical inputs. The FlexLink S7B 1616 has a LC-Display & keypads for user friendly local configuration. Remote configuration and monitoring can be done via its rear side Ethernet-Interface (http./WebGUI, SNMP) while it can also be integrated into a management and control system (NMS or M&C) via SNMP.

The FlexLink S7B-1616 is an ideal platform for flexible signal switching applications and perfectly suited for integration into Teleports, Satellite Earth Stations, DSNG´s as well as Broadcasting and CATV/IPTV headend architectures.

Safe Checkout

Description

  • Space saving 1RU/19″rack-mount design
  • Versatile L-Band switching solution 8×8 to max. 16×16
  • Supports symmetrical & asymmetrical sizes such as 8×8, 8×12, 12×8, 8×16, 16×8…upto16x16 (increments of 4)
  • Easy expansion of inputs or outputs via license-key activation (increments of 4)
  • Available with 50 Ohm or 75 Ohm connectors
  • Available with optical inputs (upon request)
  • Variable gain adjustment (@ any input)
  • Slope equalization 0-9dB (@ any input)
  • RF power monitoring (@ any input)
  • Switchable LNB supply 13/15/18V,22kHz; 400mA current monitoring (@ any input)
  • Features 10MHz external reference input (@ any input)
  • Superior RF performance, signal quality and stability
  • Dual redundant power supply







Brand

RF Design

RF Design's products are developed with highest quality levels focusing most excellent technical performance. Additionally RF Design is strong in designing customized solutions fullfilling exactly your requirements. Permanent research guarantees high quality and best performance. This includes the selection process of components and the ongoing design optimization of mechanical parts. Steady prototyping and intensive test periodes are ensuring best results in terms of functionality , specifications and performance.

Additional information

Weight 22 lbs
Dimensions 22 × 14 × 5 in
