TDA40RM-1000 Rack Mount Broadband Amplifier
$362.00
The Toner TDA40RM-1000 is a 1 GHz Rackmount Broadband Amplifier. By Using GaAs silicone hybrid, the amp provides 40 dB of gain with low distortion characteristics at a high-level RF output.

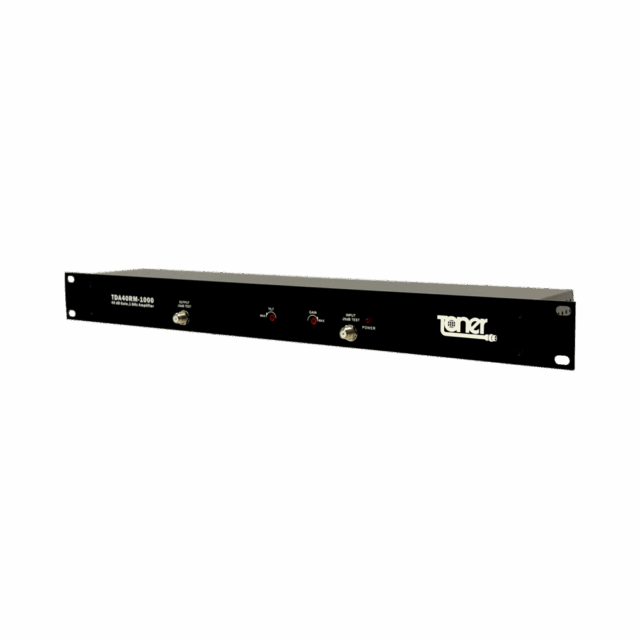

The TDA40-1000R Amplifier allows users to provide 1 GHz amplification of their TV signals anywhere a reliable high-performance amplifier is needed. The amplifier is in a 1 RU aluminum 19” wide rack mount chassis for light weight and heat dissipation. It features 20dB down test points on the front panel for both input and output. It also features both 20 dB range, gain and slope control on the front panel along with a power indicator LED. Power is by a 110-240 VAC UL listed transformer.
Usually ships same business day1 Year Limited Warranty
- 1 GHz, 40 dB Gain
- GaAs Silicone Hybrid for Low Distortion & High-Level RF Output
- 1 RU aluminum 19” wide rack mount chassis
- 20dB down test points for input and output
- 20 dB range, gain and slope control
- 110-240 VAC UL listed transformer
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 19 × 2.75 × 1.75 in |
